TTL mode

Connection of TTL encoders without zero pulse

TTL mode 1:Fig.28: Connection of TTL encoder without zero pulse

Connection of TTL counters / pulse generators without zero pulse

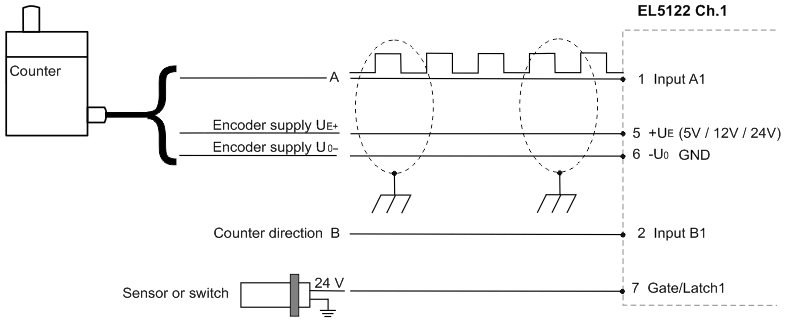

TTL mode 2:Fig.29: Connection of counter / TTL pulse generator – mode without zero pulse
TTL mode 3:

Connection instructions

  • If a counter / pulse generator is connected, the B track determines the counting direction.
