Analog output connection

Voltage output 0..10 V / -10 ... +10 V

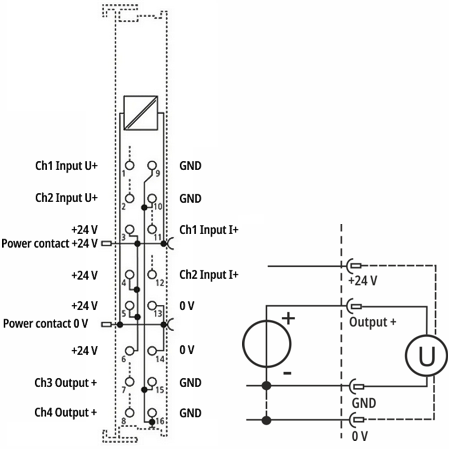

Analog output connection 1: — Connection example EL4374, voltage output, 2/4-wire

2-wire: 2-pin voltage output; 4-wire: with additional 24 V supply for the actuator

Current output 20 mA

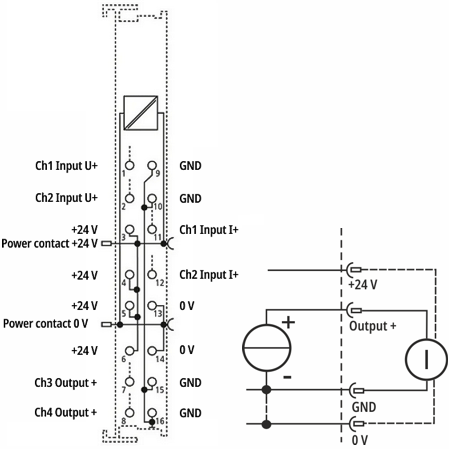

Analog output connection 2: — Connection example EL4374, current output, 2/4-wire

2-wire: 2-pin current output, 4-wire: with additional 24 V supply for the actuator
