EL4072

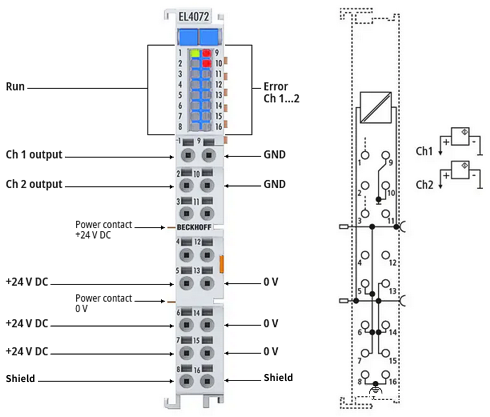

EL4072 1:Fig.5: EL4072 LED and connection

LED

Color

Meaning

RUN

green

These LEDs indicate the terminal's operating state:

off

State of the EtherCAT State Machine: INIT = initialization of the terminal

flashing

State of the EtherCAT State Machine: PREOP = function for mailbox communication and different default settings set

Single flash

State of the EtherCAT State Machine: SAFEOP = verification of the Sync Manager channels and the distributed clocks.
Outputs remain in safe state

on

State of the EtherCAT State Machine: OP = normal operating state; mailbox and process data communication is possible

flickering

State of the EtherCAT State Machine: BOOTSTRAP = function for Firmware updates of the terminal

ERROR
Ch1, 2

red

- Analog output overload: wire break at I output, short circuit at U output
- Setpoint exceeds Limiter: below low limit /above high limit
- Internal error DAC

Notice

Cable lengths > 30 m

For longer cable lengths > 30 m, suitable overvoltage protection must be provided (e.g. EL9540-0010) if corresponding interference could affect the signal cable.

EL4072 connection

Terminal point

No.

Description

Internally connected with connection

Max. current carrying capacity *)

Ch1 output

1

Voltage/current output, channel 1

-

overload protected

Ch2 output

2

Voltage/current output, channel 2

-

Overload protected

n.c.

3

-

-

-

n.c.

4

-

-

-

+24 V DC

5

+24 V

6; 7, +24 V power contact

1 A

+24 V DC

6

+24 V

5, 7, +24 V power contact

1 A

+24 V DC

7

+24 V

5, 6, +24 V power contact

1 A

Shield

8

Shield connection

16

1 A ***)

GND

9

Analog ground (reference potential for Ch1...Ch2)

10

100 mA **)

GND

10

Analog ground (reference potential for Ch1...Ch2)

9

100 mA **)

n.c.

11

-

-

-

n.c.

12

-

-

-

0 V

13

0 V

14, 15, 0 V power contact

1 A

0 V

14

0 V

13, 15, 0 V power contact

1 A

0 V

15

0 V

13, 14, 0 V power contact

1 A

Shield

16

Shield connection

8

1 A ***)

*) Constant current; short-term higher currents are to be avoided and can cause thermal overload (damage)

**) The "GND" potential is internally coupled to the "0V" potential, but is subject to a reduced current carrying capacity

***) The connection point connects directly to the DIN rail contact.
Shield connections should generally be de-energized (DC)! See analog technical information in the Beckhoff analog manual.
If possible, an external shield connection, e.g. via Beckhoff ZB8511 or similar, is preferable.

Voltage output 0...10 V / -10...+10 V

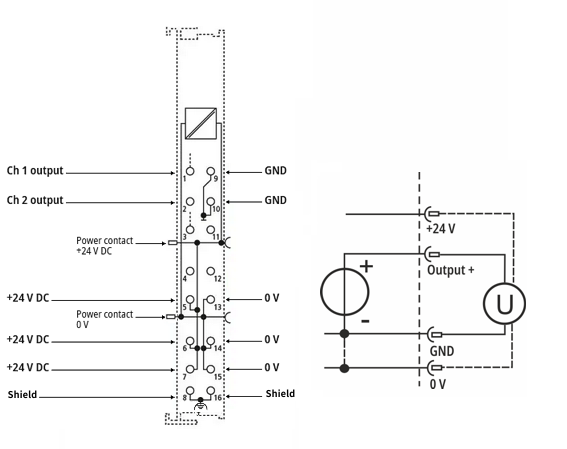

EL4072 2:Fig.6: Connection example EL4072, voltage output, 2-/4-wire

Current output -20 / 0 / +4…+20 mA

EL4072 3:Fig.7: Connection example EL4072, current output, 2-/4-wire
