Sync Manager

The scope of the process data offered can be viewed on the "Process data" tab.

The following figures show an example of the assigned input process data objects (PDO) of the sync manager (SM3) of the EL3423.

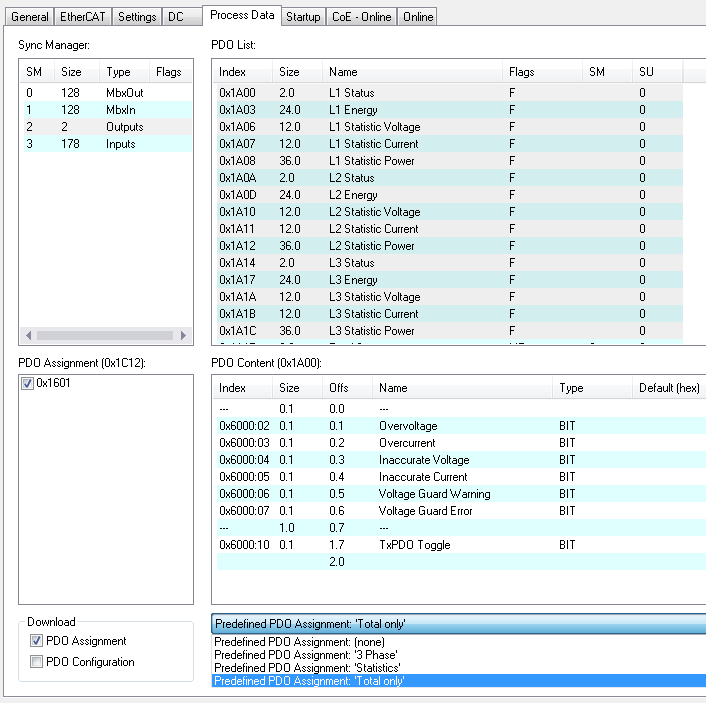

Sync Manager 1:
Process Data tab SM3, example EL3423

Predefined PDO Assignment

The "Predefined PDO Assignment" enables a simplified selection of the process data. The desired function is selected on the lower part of the Process Data tab. As a result, all necessary PDOs are automatically enabled and the unnecessary PDOs are disabled.

The following PDO assignments for the EL34xx are available:

EL3423

Name

SM2, PDO assignment

SM3, PDO assignment

3 Phase

-

0x1A00 (L1 Status)
0x1A03 (L1 Energy)

0x1A0A (L2 Status)
0x1A0D (L2 Energy)

0x1A14 (L3 Status)
0x1A17 (L3 Energy)

0x1A1E (Total Status)
0x1A20 (Total Advanced)

0x1A29 (Total Active Reduced)
0x1A2A (Total Apparent Reduced)
0x1A2B (Total reactive Reduced)

Statistics

-

0x1A06 (L1 Statistic Voltage)
0x1A08 (L1 Statistic Power)

0x1A10 (L2 Statistic Voltage)
0x1A12 (L2 Statistic Power)

0x1A1A (L3 Statistic Voltage)
0x1A1C (L3 Statistic Power)

0x1A1E (Total Status)

0x1A26 (Total Statistic Power)
0x1A27 (Total Statistic PQF)
0x1A28 (Total Interval Energy)

Single Phase

-

0x1A00 (L1 Status)
0x1A03 (L1 Energy)

0x1A1E (Total Status)
0x1A20 (Total Advanced)

0x1A29 (Total Active Reduced)
0x1A2A (Total Apparent Reduced)
0x1A2B (Total reactive Reduced)

Total only

-

0x1A1E (Total Status)
0x1A20 (Total Advanced)

0x1A26 (Total Statistic Power)
0x1A27 (Total Statistic PQF)
0x1A29 (Total Active Reduced)
0x1A2A (Total Apparent Reduced)
0x1A2B (Total reactive Reduced)
0x1A2C (Total Interval Energy Reduced)

EL3443

Name

SM2, PDO assignment

SM3, PDO assignment

Default

-

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)
0x1A04 (L1 Timing)

0x1A0A (L2 Status)
0x1A0B (L2 Basic)
0x1A0C (L2 Power)
0x1A0E (L2 Timing)

0x1A14 (L3 Status)
0x1A15 (L3 Basic)
0x1A16 (L3 Power)
0x1A18 (L3 Timing)

0x1A1E (Total Status)
0x1A1F (Total Basic)
0x1A21 (Total Active)
0x1A24 (Total L-L Voltage)

Default + Variant

0x1600 (Total Variant Value Out)

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)
0x1A04 (L1 Timing)

0x1A0A (L2 Status)
0x1A0B (L2 Basic)
0x1A0C (L2 Power)
0x1A0E (L2 Timing)

0x1A14 (L3 Status)
0x1A15 (L3 Basic)
0x1A16 (L3 Power)
0x1A18 (L3 Timing)

0x1A1E (Total Status)
0x1A1F (Total Basic)
0x1A25 (Total Variant Value In)

Advanced

-

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)
0x1A03 (L1 Energy)
0x1A04 (L1 Timing)

0x1A0A (L2 Status)
0x1A0B (L2 Basic)
0x1A0C (L2 Power)
0x1A0D (L2 Energy)
0x1A0E (L2 Timing)

0x1A14 (L3 Status)
0x1A15 (L3 Basic)
0x1A16 (L3 Power)
0x1A17 (L3 Energy)
0x1A18 (L3 Timing)

0x1A1E (Total Status)
0x1A1F (Total Basic)
0x1A20 (Total Advanced)
0x1A21 (Total Active)

Total Only

0x1600 (Total Variant Value Out)

0x1A00 (L1 Status)

0x1A0A (L2 Status)

0x1A14 (L3 Status)

0x1A1E (Total Status)
0x1A1F (Total Basic)
0x1A20 (Total Advanced)

0x1A24 (Total L-L Voltage)
0x1A25 (Total Variant Value In)
0x1A26 (Total Statistic Power)
0x1A27 (Total Statistic PQF)

0x1A29 (Total Active Reduced)
0x1A2A (Total Apparent Reduced)
0x1A2B (Total Reactive Reduced)

Classic

0x1600 (Total Variant Value Out)

0x1A00 (L1 Status)
0x1A09 (L1 Classic)

0x1A0A (L2 Status)
0x1A13 (L2 Classic)

0x1A14 (L3 Status)
0x1A1D (L3 Classic)

0x1A1E (Total Status)

0x1A25 (Total Variant Value In)

Single Phase

0x1600 (Total Variant Value Out)
0x1601 (Total Interval)

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)
0x1A03 (L1 Energy)
0x1A04 (L1 Timing)
0x1A06 (L1 Statistic Voltage)

0x1A1E (Total Status)
0x1A1F (Total Basic)
0x1A25 (Total Variant Value In)
0x1A28 (Total Interval Energy)

DPM

0x1600 (Total Outputs Device)
0x1601 (Total Interval)

0x1A00 (L1 Status)

0x1A0A (L2 Status)

0x1A14 (L3 Status)

0x1A1E (Total Status)

0x1A25 (Total Variant Value In)

0x1A2D (DPM Data)

EL3446

Name

SM2, PDO assignment

SM3, PDO assignment

Current only

-

0x1A01 (I1 Current)
0x1A03 (I2 Current)
0x1A05 (I3 Current)
0x1A07 (I4 Current)
0x1A09 (I5 Current)
0x1A0B (I6 Current)

DPM

-

0x1A00 (I1 Channel)
0x1A02 (I2 Channel)
0x1A04 (I3 Channel)
0x1A06 (I4 Channel)
0x1A08 (I5 Channel)
0x1A0A (I6 Channel)

0x1A0C (DPM Variant Value In)

EL3453

Name

SM2, PDO assignment

SM3, PDO assignment

Default

-

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)

0x1A0C (L2 Status)
0x1A0D (L2 Basic)
0x1A0E (L2 Power)

0x1A18 (L3 Status)
0x1A19 (L3 Basic)
0x1A1A (L3 Power)

0x1A24 (Total Status)
0x1A25 (Total Basic)

Default + Variant

0x1600 (Total Variant Value Out)

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)

0x1A0C (L2 Status)
0x1A0D (L2 Basic)
0x1A0E (L2 Power)

0x1A18 (L3 Status)
0x1A19 (L3 Basic)
0x1A1A (L3 Power)

0x1A24 (Total Status)
0x1A25 (Total Basic)
0x1A2E (Total Variant Value In)

Advanced

-

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)
0x1A07 (L1 Advanced)

0x1A0C (L2 Status)
0x1A0D (L2 Basic)
0x1A0E (L2 Power)
0x1A13 (L2 Advanced)

0x1A18 (L3 Status)
0x1A19 (L3 Basic)
0x1A1A (L3 Power)
0x1A1F (L3 Advanced)

0x1A24 (Total Status)
0x1A25 (Total Basic)
0x1A26 (Total Advanced)

Total Only

0x1600 (Total Variant Value Out)

0x1A00 (L1 Status)

0x1A0C (L2 Status)

0x1A18 (L3 Status)

0x1A24 (Total Status)
0x1A25 (Total Basic)
0x1A26 (Total Advanced)

0x1A2E (Total Variant Value In)

0x1A36 (Total Active Reduced)
0x1A37 (Total Apparent Reduced)
0x1A38 (Total Reactive Reduced)

Classic

0x1600 (Total Variant Value Out)

0x1A00 (L1 Status)
0x1A0B (L1 Classic)

0x1A0C (L2 Status)
0x1A17 (L2 Classic)

0x1A18 (L3 Status)
0x1A23 (L3 Classic)

0x1A24 (Total Status)

0x1A2E (Total Variant Value In)

Single Phase

0x1600 (Total Variant Value Out)
0x1601 (Total Interval)

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)
0x1A06 (L1 Timing)
0x1A07 (L1 Advanced)

0x1A24 (Total Status)

DPM

0x1600 (Total Variant Value Out)
0x1601 (Total Interval)

0x1A00 (L1 Status)
0x1A01 (L1 Basic)
0x1A02 (L1 Power)

0x1A0C (L2 Status)
0x1A0D (L2 Basic)
0x1A0E (L2 Power)

0x1A18 (L3 Status)
0x1A19 (L3 Basic)
0x1A1A (L3 Power)

0x1A24 (Total Status)
0x1A25 (Total Basic)

0x1A2E (Total Variant Value In)

0x1A3A (DPM Data)

EL3483

Name

SM2, PDO-Zuordnung

SM3, PDO-Zuordnung

Default

-

0x1A00 (L1 Status)

0x1A0A (L2 Status)

0x1A14 (L3 Status)

0x1A20 (Total Advanced)

Single Phase

-

0x1A00 (L1 Status)

0x1A1E (Total Status)
0x1A20 (Total Advanced)

Sync Manager 2:

Manual selection of the input PDO (SM3)

When manually compiling the PDO, care must be taken that no more than 238 bytes of input PDO are selected. The output PDOs are not subject to any restrictions and may always be selected completely.

Notes on the TxPDO toggle bits

The TxPDO toggle bits indicate that new data is available for the respective measured values:

EL3423

EL3443

Name

PDO assignment | PDO

Name

PDO assignment | PDO

L1 Status

1A00:09 | 0x6010:10

L1 Status

1A00:09 | 0x6010:10

L2 Status

1A0A:09 | 0x6010:10

L2 Status

1A0A:09 | 0x6010:10

L3 Status

1A14:09 | 0x6020:10

L3 Status

1A14:09 | 0x6020:10

L1 Advanced

-

L1 Advanced

1A05:02 | 0x6007:10

L2 Advanced

-

L2 Advanced

1A0F:02 | 0x6017:10

L3 Advanced

-

L3 Advanced

1A19:02 | 0x6027:10

Total Interval Energy

-

Total Interval Energy

1A28:02 | 0xF60D:10

EL3453

EL3483

Name

PDO assignment | PDO

Name

PDO assignment | PDO

L1 Status

1A00:0B | 0x6010:10

L1 Status

1A00:09 | 0x6010:10

L2 Status

1A0C:0B | 0x6010:10

L2 Status

1A0A:09 | 0x6010:10

L3 Status

1A18:0B | 0x6020:10

L3 Status

1A14:09 | 0x6020:10

L1 Advanced

1A07:02 | 0x6007:10

L1 Advanced

-

L2 Advanced

1A13:02 | 0x6017:10

L2 Advanced

-

L3 Advanced

1A1F:02 | 0x6027:10

L3 Advanced

-

Total Interval Energy

1A31:02 | 0xF60D:10

Total Interval Energy

-
