Modules and slots of the EL3475

The EL3475 has configurable PDOs.

Individual PDOs can be changed and elements added.

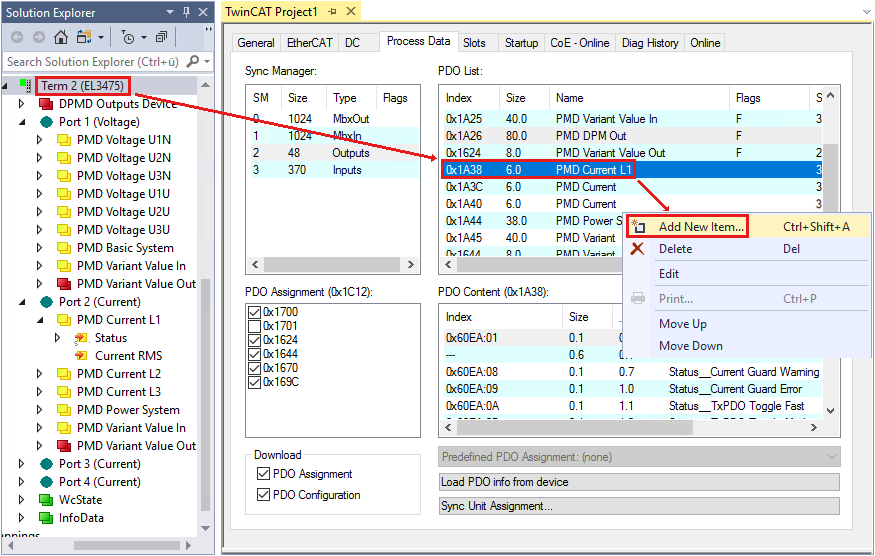

Modules and slots of the EL3475 1:Fig.17: EL3475 – Configuring the PDO

With a right-click on the PDO contents and "Add new element", you can add the fundamental wave RMS values, for example, via the dialog that then opens.

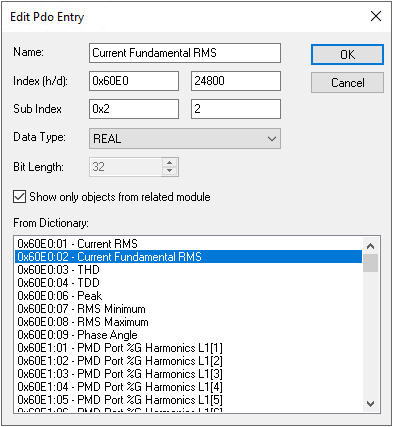

Modules and slots of the EL3475 2:Fig.18: EL3475 – Editing the PDO entry

Now the PDO has more entries than in the screenshot above:

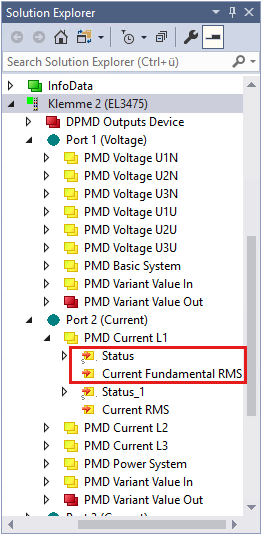

Modules and slots of the EL3475 3:Fig.19: EL3475 – PDO with more entries
