Diag-Messages
The terminal provides the following diagnosis messages (DiagMessages), they belong together in pairs:
Diag-Code | Meaning | TwinCAT Message | Troubleshooting |
|---|---|---|---|
#x4101 | Terminal-Overtemperature | Terminal-Overtemperature | Device is too warm internally, but continues to work, ensure cooling |
#x170E | Device temperature is ok again | No overtemperature anymore | Device is too warm internally, but continues to work, ensure cooling |
#x8707 | Channel overload (Channel %d) | Channel overload (Channel %d) | Measuring range exceeded, please check and stop |
#x0001 | No error | No error | - |

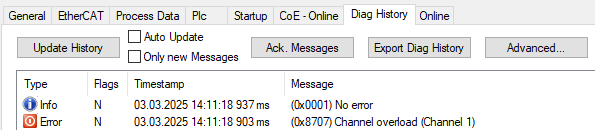

Fig.137: Display in TwinCAT 3.1, example
