General Information

Linking the function block

The function block provides variables that can be linked to the terminal via the "PLC" tab in the System Manager. The following adjustments must be made in preparation:

1. Configuring the slots depending on the connected hardware

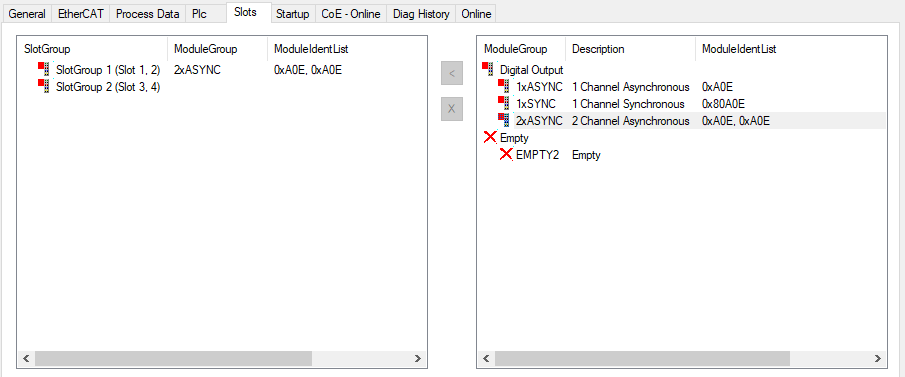

General Information 1:Fig.154: 1. Configuring the slots depending on the connected hardware

2. Activating all process data

General Information 2:Fig.155: 2. Activating all process data

3. Creating the "PLC" data type per channel and linking the function block

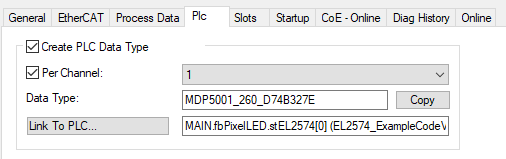

General Information 3:Fig.156: 3. Creating the "PLC" data type per channel and linking the function block
