Note on advanced DC settings

Note on advanced DC settings 1:

EL2502-0010 only distributed clocks device in the EtherCAT system

If the EL2502-0010 is the only distributed clocks device in the EtherCAT system, the operation mode must also be enabled via the "Advanced Settings" (see following figure).

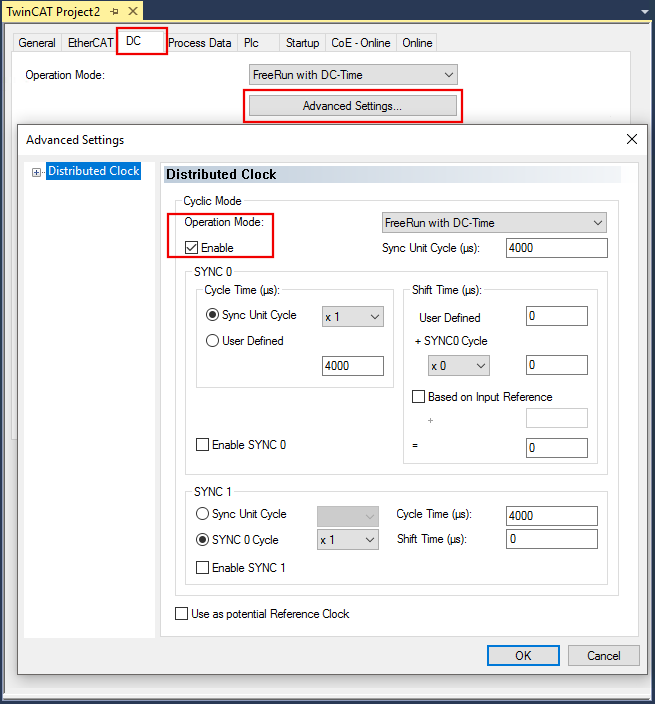

Note on advanced DC settings 2:Fig.139: Enabling "FreeRun with DC-Time" operation mode via Advanced settings in the "DC" tab
