Firmware update EL1262-0010

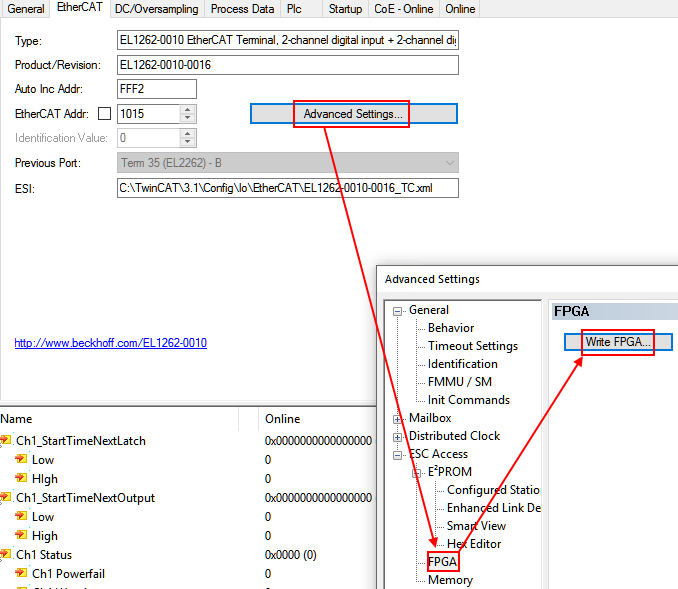

FPGA update

As FPGA zip file:

*select .zip file, takes several minutes, note progress bar , runs through twice

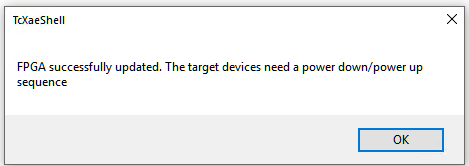

Ok:

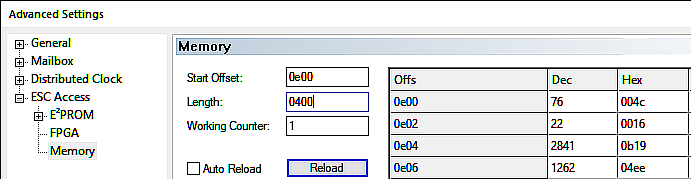

The FPGA state can be viewed in register x0E00

µC update

The µC firmware update has to be done as usual, e.g. via the dialog

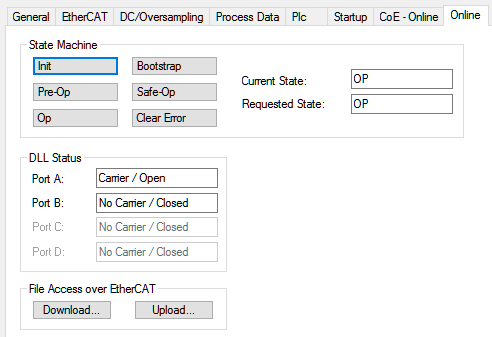

Procedure: Set device to bootstrap, load *.efw file into device.

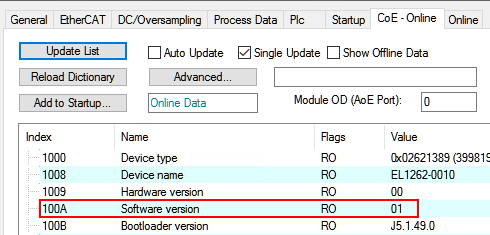

The current FW status can be viewed in the CoE directory
