Example program 1: Frequency measurement with inductive sensor

Example 1: Frequency measurement with inductive sensor

Download: (Example program)

Content:

• Version TwinCAT2: two files *.pro and *.tsm
• Version TwinCAT3: one file *.tnzip

Data:

• 1 ms cycle time
• 1000x oversampling on both channels

Connection diagram:

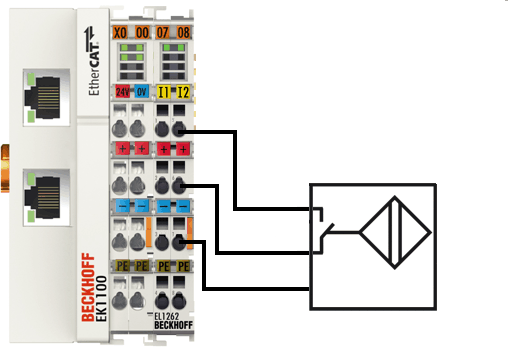

Fig.209: Wiring for example program 1
