Connection of EK9160 with OPC UA

Connection with UaExpert

The connection with an OPC UA client gives you full access to the data of the connected EtherCAT Terminals.

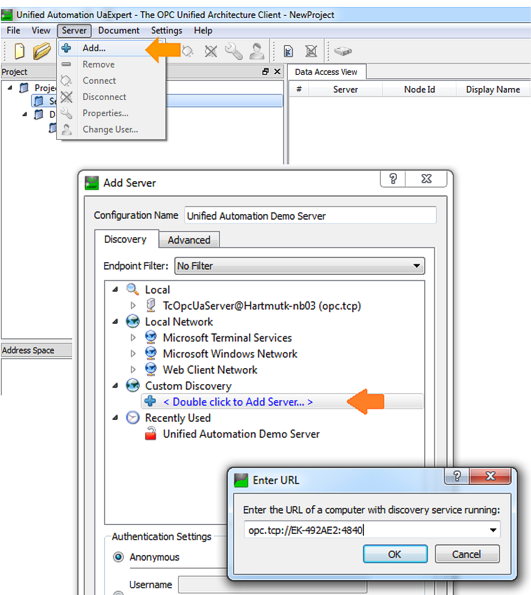

• Start UaExpert and click on "Add Server"
• Enter the server URL, e.g. for host name EK-492AE2:

opc.tcp://EK-492AE2:4840

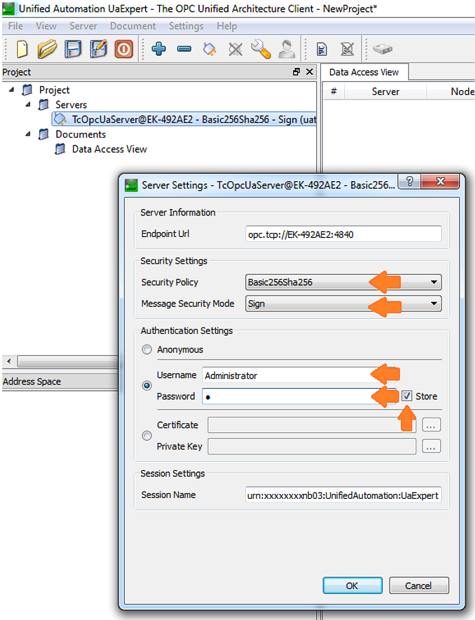

Check the server settings:

• Security Policy:
  Basic256Sha256
• Message Security Mode:
  Sign
• Authentication Settings:
  Username: Administrator
  Password: 1

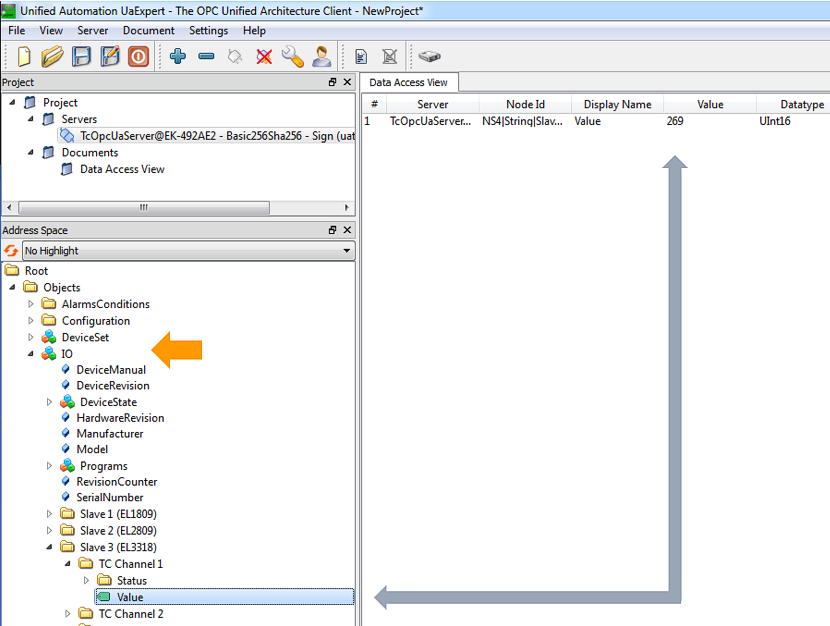

• The process data of the EtherCAT Terminals appear in the structure tree under IO
• Process values can be dragged into the "Data Access View" window

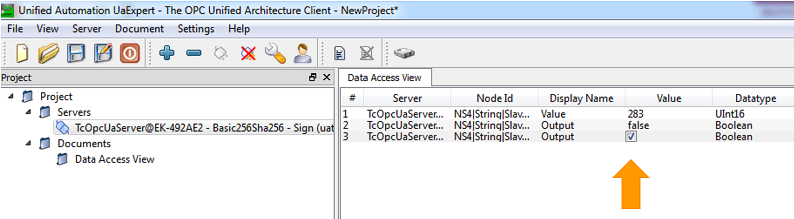

• Output values can be controlled
