Statistics

This dialog contains various (frame) statistics for the EOM master and its EOM devices

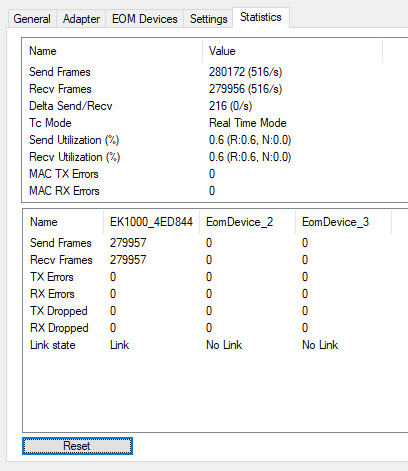

Statistics 1:
“Statistics” tab

Name

Explanation

Send Utilization (%)

Utilization of the ESL transmission in transmit direction

R: real-time data, N: non-real-time data

Recv Utilization (%)

Utilization of the ESL transmission in receive direction

R: real-time data, N: non-real-time data

Note

The utilization of the EK1000 should not exceed 50% in transmit/receive direction

In the event of a high network load or an expansion, this provides sufficient buffering.

  • No action is required if the network load is ≤ 20%.
  • With a network load between 20...50%, this should be investigated and optimized
  • If the network load is ≥ 50%, it should be mandatory to implement measures to reduce the network load.
