ID-Switch

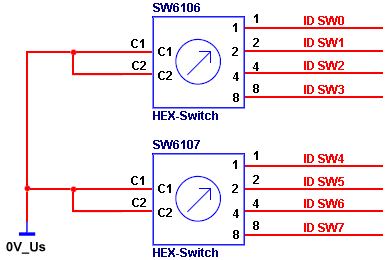

In order to change the EJ1101-0022 ID manually, two optional hexadecimal switches can be contented with the EJ1101-0022 (4 bit per switch => value range 0 – 255). The figure below shows an application example. The switch shall work as a pull down for the connected signals. The hex switches shall be referenced to 0V Us.

ID-Switch 1:
EJ1101-0022 - Optional ID-Switches
ID-Switch 2:

Notes on the coding of the ID-Switches

Only ID-Switches with hexadecimal-real coding can be used.
