Connection

WARNING

Risk of injury through electric shock and damage to the device!

Bring the bus terminal system into a safe, de-energized state before beginning to mount, disassemble, or wire the bus terminals!

Notice

Cable lengths > 30 m

For cable lengths > 30 m, suitable overvoltage protection (surge protection) must be provided (e g. EL9540-0010) if corresponding interference could affect the signal cable.

Terminal point		Description	Internally connected with connection	Max. current carrying capacity*)
Abbreviation	No.	Description	Internally connected with connection	Max. current carrying capacity*)
Ch1 analog output	1	Voltage/current output, channel 1	–	overload protected
Ch2 analog output	2	Voltage/current output, channel 2	–	overload protected
Ch3 analog output	2	Voltage/current output, channel 3	–	overload protected
Ch4 analog output	2	Voltage/current output, channel 4	–	overload protected
+24 V DC	5	+24 V	6, 7, 8 +24 V power contact	1 A
+24 V DC	6	+24 V	5, 7, 8 +24 V power contact	1 A
+24 V DC	7	+24 V	5, 6, 8 +24 V power contact	1 A
+24 V DC	8	+24 V	5, 6, 7, +24 V power contact	1 A
GND	9	Analog ground (reference potential for Ch1…Ch4)	10, 11, 12	100 mA**)
GND	10	Analog ground (reference potential for Ch1…Ch4)	9, 11, 12	100 mA**)
GND	11	Analog ground (reference potential for Ch1…Ch4)	9, 10, 12	100 mA**)
GND	12	Analog ground (reference potential for Ch1…Ch4)	9, 10, 11	100 mA**)
0 V	13	0 V	14, 15, 16, 0 V power contact	1 A
0 V	14	0 V	13, 15, 16, 0 V power contact	1 A
0 V	15	0 V	13, 14, 16, 0 V power contact	1 A
0 V	16	0 V	13, 14, 15, 0 V power contact	1 A
) Constant current; short-term higher currents are to be avoided and can lead to thermal overload (damage) *) The GND potential is internally coupled to the 0 V potential, but is subject to a reduced current-carrying capacity

Voltage output 0…10 V/-10…+10 V

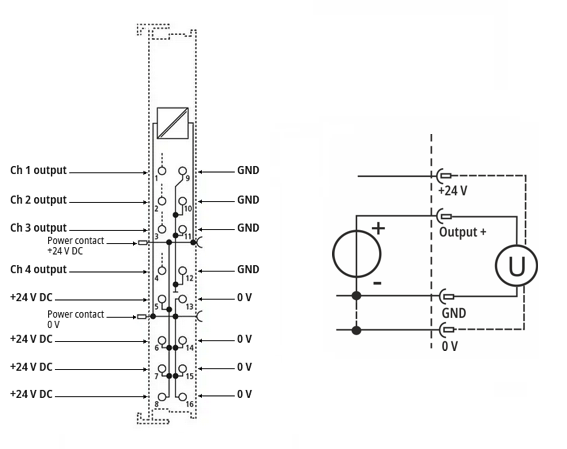

Connection 2: — Fig.6: Connection example ED4074, voltage output, 2-/4-wire

2-wire: 2-pin voltage output;
4-wire: with additional 24 V supply for the actuator

Current output -20/0/+4…+20 mA

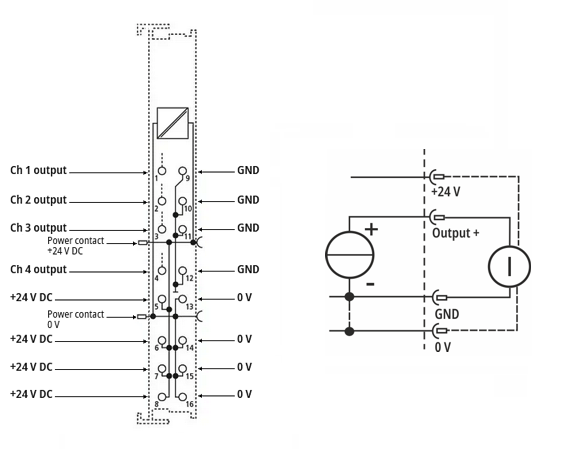

Connection 3: — Fig.7: Connection example EL4074, current output, 2-/4-wire

2-wire: 2-pin current output;
4-wire: with additional 24 V supply for the actuator
