Configure user LEDs U1 and U2

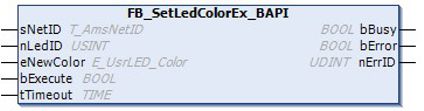

The function block FB_SetLedColorEx_BAPI can be used to switch the user LEDs on industrial PCs and embedded PCs with BIOS API support. The LED color is switched via a rising edge at bExecute and the eNewColor parameter. For devices with a user LED, this is selected via nLedID = 0 (default value is 0). For devices with several user LEDs, the U1 LED is selected via nLedID = 1 or the U2 LED via nLedID = 2.

The LED can be switched off (eNewColor = eUsrLED_Off) or set to red (eNewColor = eUsrLED_Red), blue (eNewColor = eUsrLED_Blue) or green (eNewColor = eUsrLED_Green).

Inputs

VAR_INPUT
    sNetID         : T_AmsNetID;
    nLedID         : USINT;
    eNewColor      : E_UsrLED_Color;
    bExecute       : BOOL;
    tTimeout       : TIME;
END_VAR

Name	Type	Description
sNetID	T_AmsNetID	AMS network ID of the device (empty string or local network ID) (type T_AmsNetId)
nLedID	USINT	For devices with several user LEDs, the U1 LED is selected via nLedID = 1 or the U2 LED via nLedID = 2. (Default value is 0)
eNewColor	E_UsrLED_Color	New LED color (type E_UsrLED_Color)
bExecute	BOOL	The command is executed with a rising edge. The input must be reset as soon as the function block is no longer active (`bBusy=FALSE`).
tTimeout	TIME	Time until the internal ADS communication is aborted.

Outputs

VAR_OUTPUT
    bBusy    : BOOL;
    bError   : BOOL;
    nErrID   : UDINT;
END_VAR

Name	Type	Description
bBusy	BOOL	TRUE, as long as the function block is active.
bError	BOOL	TRUE if an error occurs during command execution.
nErrID	UDINT	Contains the ADS error code or the command-specific error code of the last executed command. Is reset to 0 by the execution of a command at the inputs.

Prerequisites

Development environment	Target platform	PLC libraries to be integrated (category group)
TwinCAT v3.1.0	PC or CX (x86, x64, Arm^®)	Tc2_System (system) v3.6.1.0
