CX2500-0031 - Technical data

The system interface CX2500-0031 expands a CX20x0 by two serial RS485/RS422 interfaces.

Technical data	CX2500-0031
Interfaces	2x D Sub RS485 / RS422
Power supply	via system bus (via power supply module CX2100-0xxx)
max. Power loss	1.2 W
Current supply	500 V (supply/internal electronics)
Electrical isolation	500 V

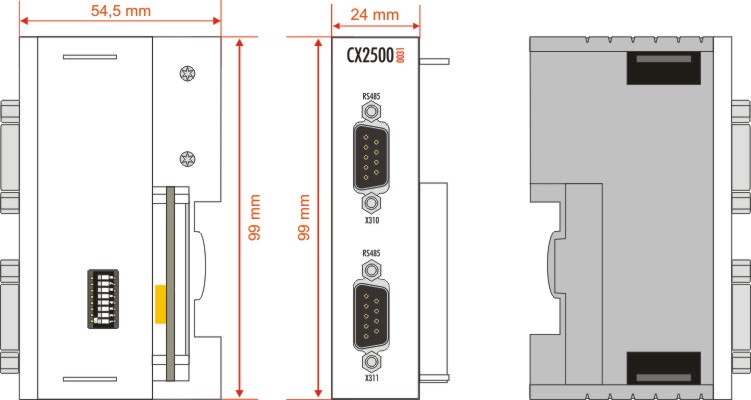

Dimensions (W x H x D)	24 mm x 99 mm x 54.5 mm
Weight	approx. 203 g
Operating/storage temperature	-25° C ... +60° C / -40° C ... +85° C
Relative humidity	95% no condensation
Vibrations/shock resistant	conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection class	IP 20
