LEDs CX1100-09xx

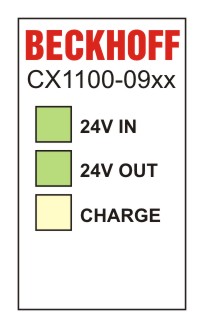

The UPS-Modules show their state of operating via status LEDs. The LEDs reside on the front of the module. The following table shows the possible states and their meaning.
|
Display |
LED |
Meaning |
|---|---|---|
|
|
24 V IN |
power supply (in) The LED glows green if input power supply ( >21,5 V) is connected , otherwise it glows red. |
|
24 V OUT |
power supply (out) The LED glows green if a consuming unit is connected to the power output ( >21,5 V), otherwise it glows red.In case of short circuit the LED start blinking red. | |
|
CHARGE (Charge status) |
- charging: yellow - full charged: green |
