Establishing a mobile communication connection

In this step we show you how to establish a mobile communication connection. You need a connection with a mobile communication provider, which will provide you with further access data.

Requirements:

  • Connection with a mobile communication provider.
  • Industrial PC with already installed drivers (see: Installing the driver)

Proceed as follows:

1. Click the network symbol at the bottom right in the taskbar to display the available connections.

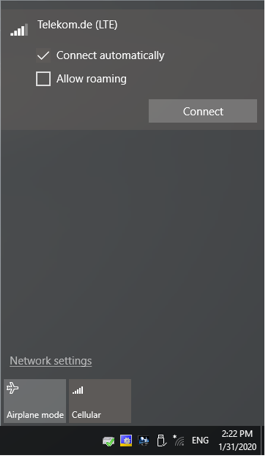

Establishing a mobile communication connection 1:
2. Choose the appropriate connection and click Connect.
3. You have to enter a PIN if the SIM card is protected by one.
  • Depending on the mobile communication provider, you must configure the connection in a browser and enter additional access data. The access data will be provided to you by the mobile communication provider.
