Setup in TwinCAT

The CU2508 must be created as a MultipleProtocolHandler in the configuration before functions can be assigned to its downlink ports.

Online scanning of the CU2508 is for the time being only possible with EtherCAT systems connected to the downlink ports. The notes in the EtherCAT port definition regarding the ESI XML files must then be observed.

Setup

Append a new device in the TwinCAT System Manager with a right click.

Setup in TwinCAT 1:Fig.23: Appending a new device in TwinCAT 2.11
Setup in TwinCAT 2:Fig.24: Appending a new device in TwinCAT 3

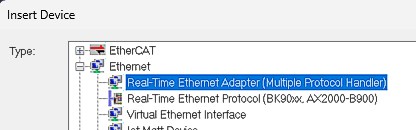

Select the "Real-Time Ethernet Adapter (Multiple Protocol Handler)".

Setup in TwinCAT 3:Fig.25: Selection of the MultipleProtocolHandler in TwinCAT 2.11
Setup in TwinCAT 4:Fig.26: Selection of the MultipleProtocolHandler in TwinCAT 3

Now select the Gbit uplink port used for the CU2508. You can only select ports on which the Beckhoff real-time driver is installed/activated. <none> can also be selected if the port is to be selected later.

Setup in TwinCAT 5:Fig.27: Selection of the Gbit Ethernet port used on the controller

If the real-time driver is not yet installed, it has to be installed first, e.g. via the System Manager options.

Setup in TwinCAT 6:Fig.28: Installation of the Beckhoff real-time driver

Characteristics that are important for the further operation, e.g. the MAC and the IP addresses of the Gbit network port are now listed in the adapter characteristics of the MultipleProtocolHandler.

Setup in TwinCAT 7:Fig.29: Adapter data for the Gbit Ethernet port used

Name

Explanation

Description

Name of the adapter in the operating system (the same on several identical PC systems)

Device Name

Unique adapter name (different on several identical PC systems)

MAC Address

MAC address of the hardware adapter; not changeable

IP Address

IP address of the hardware adapter; changeable via the Windows operating system "Network Connection" settings

Freerun Cycle

In ConfigMode, the adapter is operated with this cycle time, i.e. usually 250 cycles/sec.

Promiscuous Mode

If activated, the Ethernet Frames are copied from the real-time context into the Windows NDIS layer and can thus be read by Netmon/Wireshark®

Virtual Device Names

deactivated:
"Device Name" is used by TwinCAT for the identification of the network adapter. Thus a TwinCAT configuration is not transferable to another PC system without being changed.


activated
:
"Description" is used by TwinCAT for the identification of the network adapter. Thus a TwinCAT configuration is transferable to another PC system without being changed if an adapter with this name is present there.

The number of necessary ports must be set in the port mask (A). The TCP/IP operation mode must also be set (B); “via EoE” must be set for pure EtherCAT operation. See the Notes on TCP/IP settings. In each case the ESL protocol must be activated for the CU2508 on this Gbit port (C).

Setup in TwinCAT 8:Fig.30: Number of adapters

The CU2508 has no separate diagnostic variables, since it is designed to be as transparent an infrastructure device as possible.

In the following

Diagnostics

The TwinCAT System Manager provide several information about the online operation.

Setup in TwinCAT 9:Fig.31: Statistics

Name

Explanation

Send Utilization (%)

Utilization of the Gbit ESL transmission in send direction

R: real-time data, N: non-real-time data

Recv Utilization (%)

Utilization of the Gbit ESL transmission in receive direction

R: real-time data, N: non-real-time data

The diagnostic data can also be retrieved via ADS.

Read Rx/Tx error counter

CMD

Ads Read

Port

10

Index Group

Object ID of the RT Ethernet device + port number (1..8)
(for port 1 of the CU from Fig. "Statistics": 0x03010011)

Index Offset

0x03010038

  Read data

    UINT32

Tx Error Count

    UINT32

Rx Error Count

Reading the port status

CMD

Ads Read

Port

10

Index Group

Object ID of the RT Ethernet device + port number (1..8)

Index Offset

0x03010042

  Read data

    UINT64

Timestamp in distributed clocks (DC) time (ns)

    UINT32

Tx Frame Count

    UINT32

Rx Frame Count

    UINT32

Rx Dropped Frame Count

    UINT32

Tx Dropped Frame Count

    UINT32

Flags  [ LinkError = 0x00000001]

    UINT32

reserved

Setup in TwinCAT 10:Fig.32: Object ID of the RT Ethernet device, here: 0x03010010
