Firmware compatibility
CU1521, CU1521-0010, CU1561
The firmware of the converters CU1521-00x0, CU1561 cannot be updated.
CU1521-0020
Hardware (HW) | Firmware (FW) | Revision no. | Date of release |
|---|---|---|---|
00 | 01 | CU1521-0020-0000 | 2023/07 |
02 | CU1521-0020-0000 | 2025/03 | |
03 | CU1521-0020-0000 | 2025/05 | |
04 | CU1521-0020-0001 | 2025/08 |

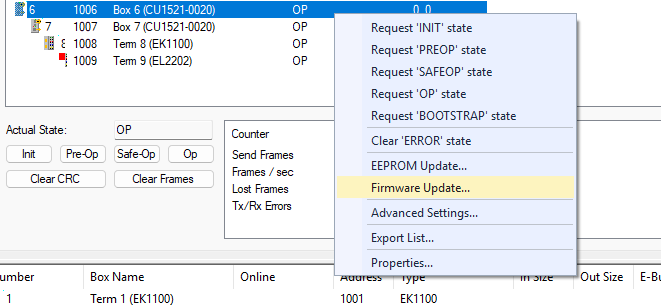

The converter can be updated via *.rpd firmware file.

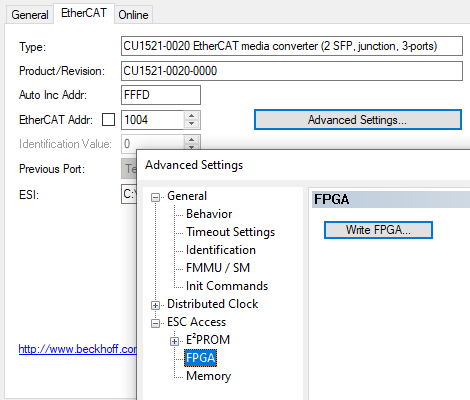

Fig.44: Firmware update by writing to the FPGA with *.rpd fileThe firmware version is displayed online in register x0E06, here: FW02

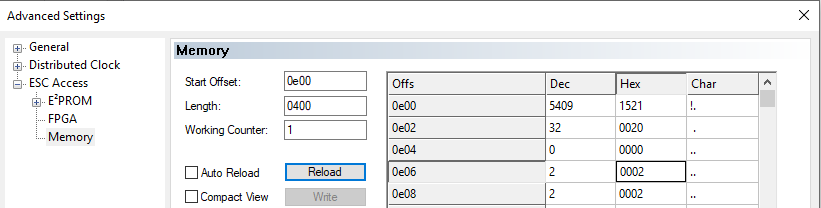

Fig.45: Display firmware version in register x0E06
