Earthing/Shielding

The FE contact on the supply socket must be directly connected to the mounting rail contact. During installation, always take care of a conductive connection to the mounting rail.

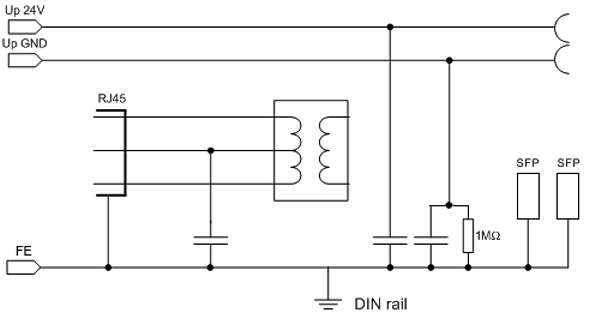

Fig.21: Internal earthing concept CU15x1

Fig.22: Internal earthing concept CU1521-0020
