Structure
The figure only shows an example device.

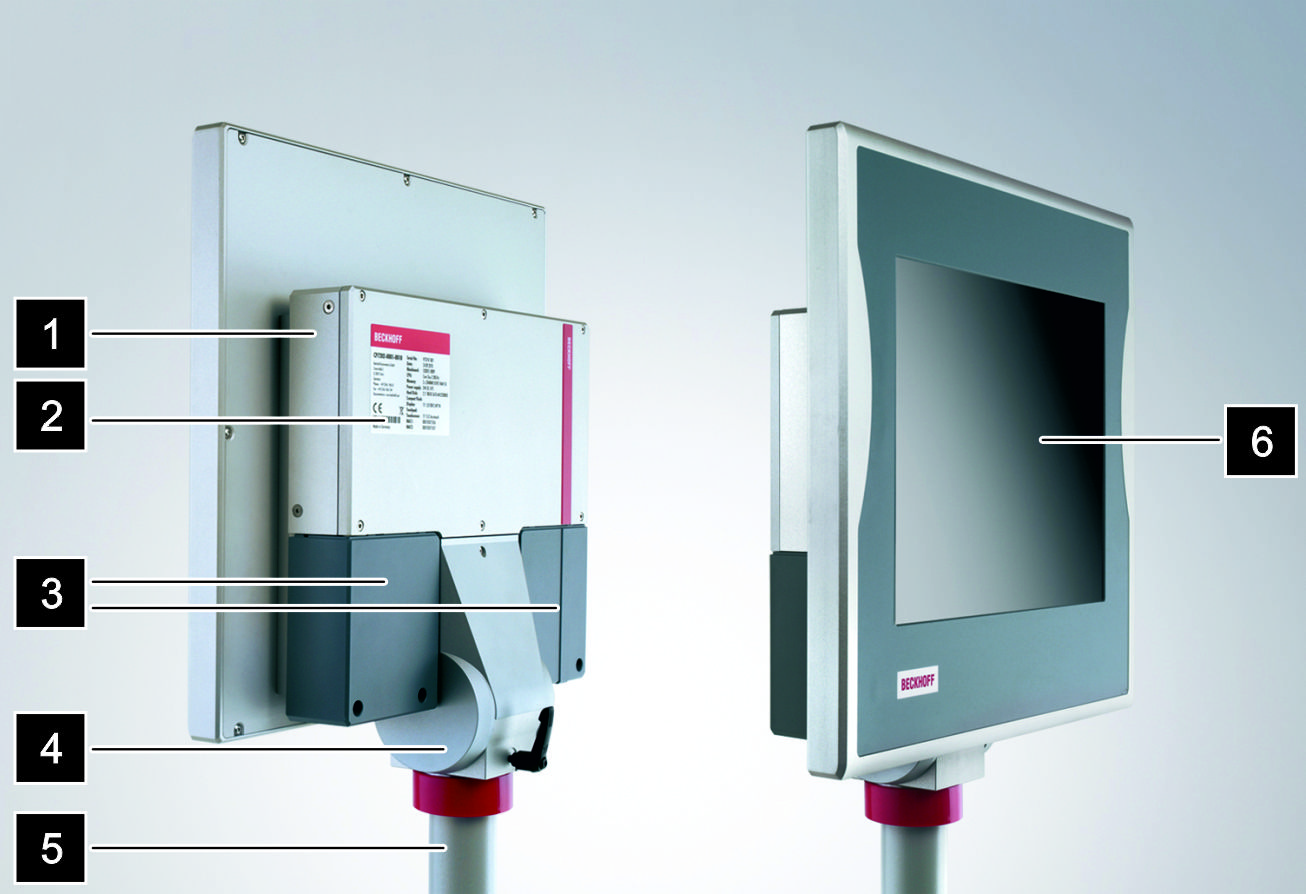

Fig.1: StructureNo. | Component | Description |
|---|---|---|
1 | Side cover | Access to battery and storage medium |
2 | Name plate | Information on the equipment of the panel PC |
3 | Connection compartment | Access to interfaces |
4 | Mounting arm adapter | Adapter for installation on the mounting arm tube |
5 | Mounting arm tube | Mounting arm tube for installation from above or below |
6 | Display and touch screen glass | Operation of the panel PC |
