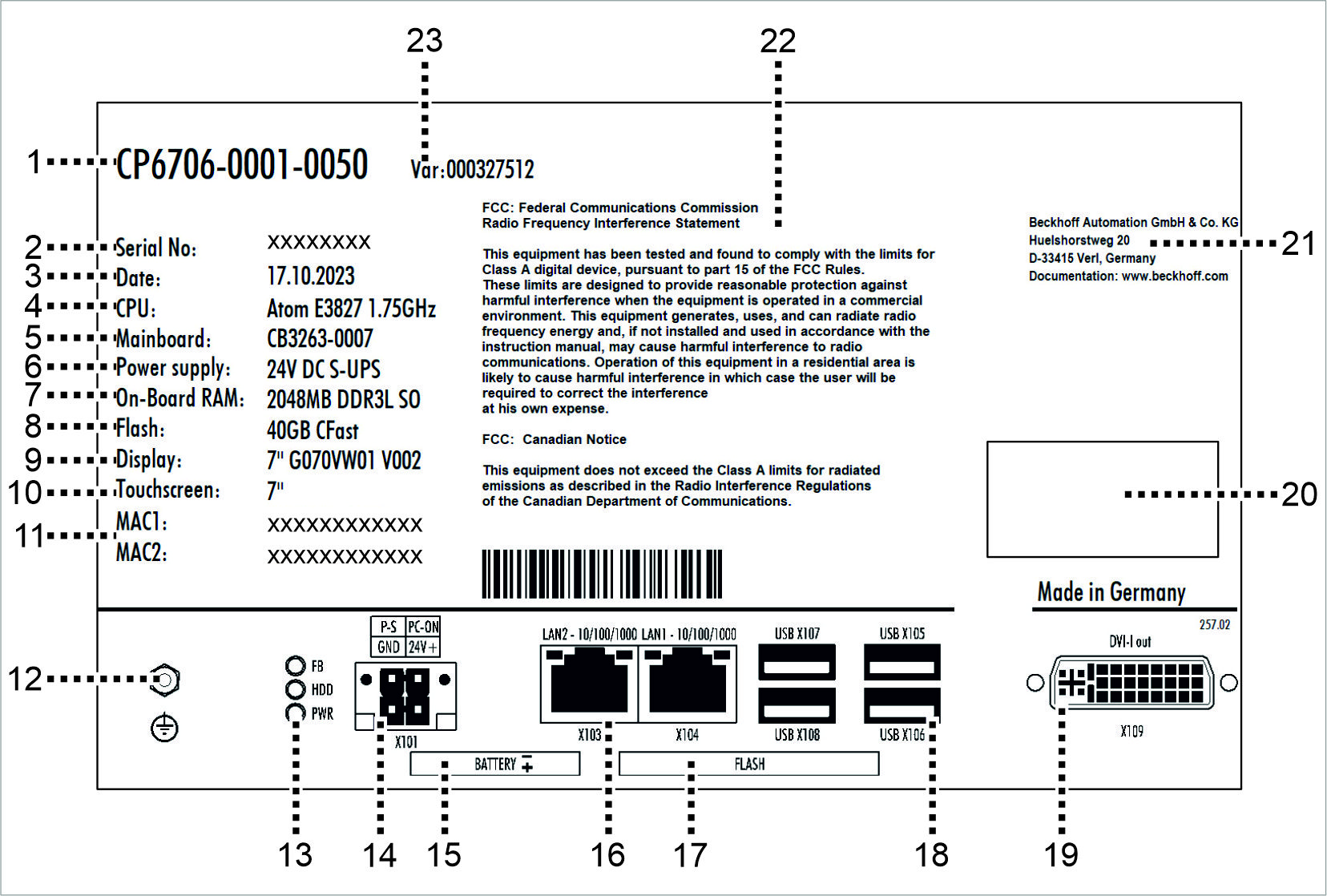

Name plate
The name plate provides information about the panel PC equipment. The name plate shown here serves only as an example.
No. | Description |
|---|---|
1 | Model: the last four digits indicate the device generation. |
2 | Serial number (BTN) |
3 | Date of manufacture |
4 | CPU |
5 | Mainboard |
6 | Power supply |
7 | Main memory |
8 | CFast |
9 | Display |
10 | Touch screen |
11 | MAC addresses of the Ethernet interfaces (X103, X104) |
12 | PE protective conductor connection for low-resistance protective earthing and functional earthing of the panel PC |
13 | Status LEDs |
14 | Power supply connection (X101) |
15 | Battery position |
16 | Ethernet interfaces (X103, X104) |
17 | Storage medium position |
18 | USB interfaces (X105-X108) |
19 | DVI interface (X109) |
20 | Symbols Note: Here are the symbols applicable to the device such as Ce, EAC, UKCA, |
21 | Address of the vendor |
22 | FCC approval |
23 | Variant number: commercial number of the order code including ordering options |
. The approvals of your device can be found on the name plate and in chapter 10.2 Approvals.
