Structure

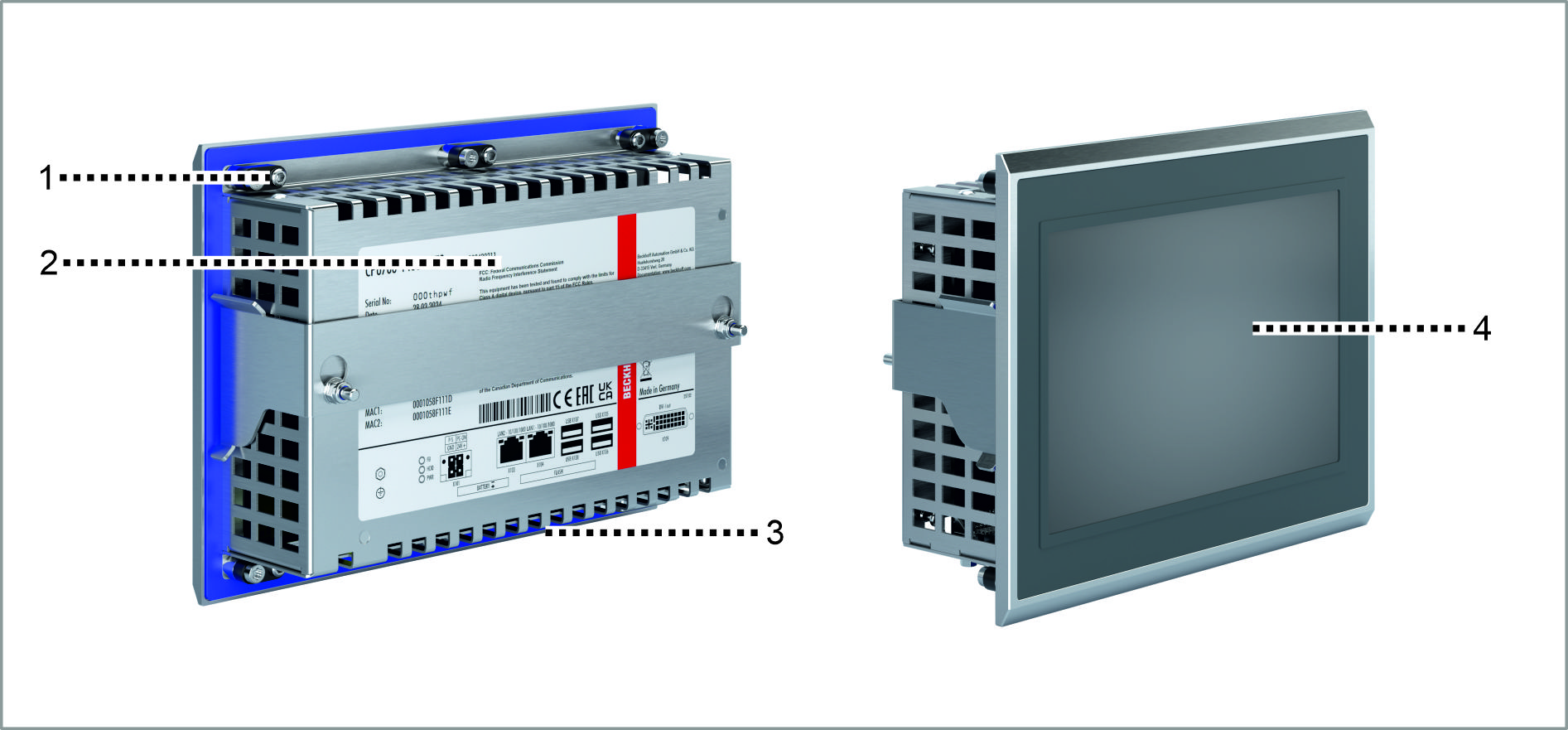

Figure 2 shows an example of the structure of the panel PC.
No. | Component | Description |
|---|---|---|
1 | Clamping lever | Mounting the panel PC in the control cabinet wall |
2 | Name plate | Information on the equipment of the panel PC |
3 | Access to interfaces | Interfaces on the underside |
4 | Display and touch screen glass | Operation of the panel PC |
You can optionally order the device with a stainless steel front:
- CP6706-1400

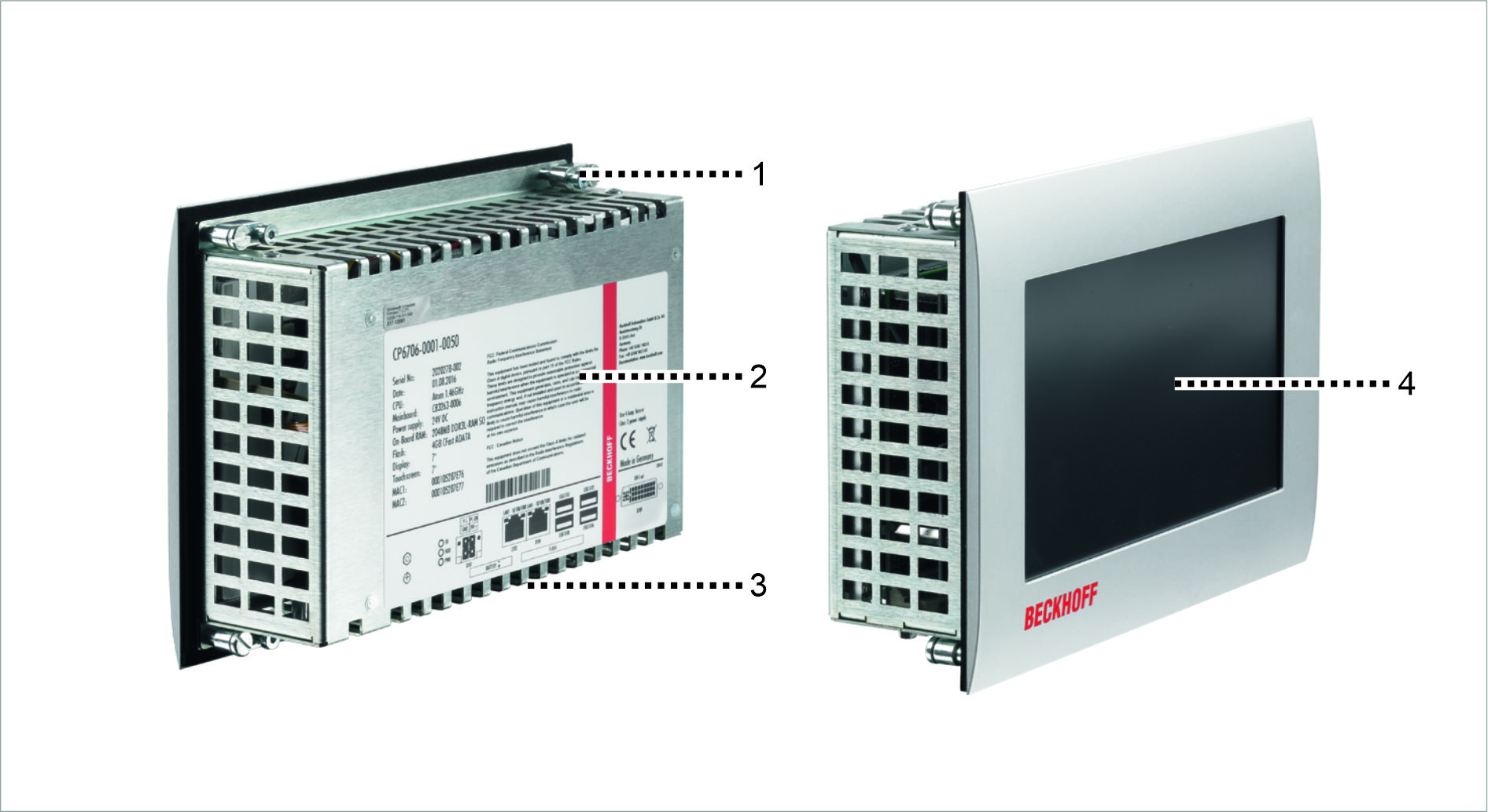

The following figure shows the structure of a stainless steel device.
No. | Component | Description |
|---|---|---|
1 | Clamping lever | Mounting the panel PC in the control cabinet wall |
2 | Name plate | Information on the equipment of the panel PC |
3 | Access to interfaces | Interfaces on the underside |
4 | Display and touch screen glass | Operation of the panel PC |
