Structure

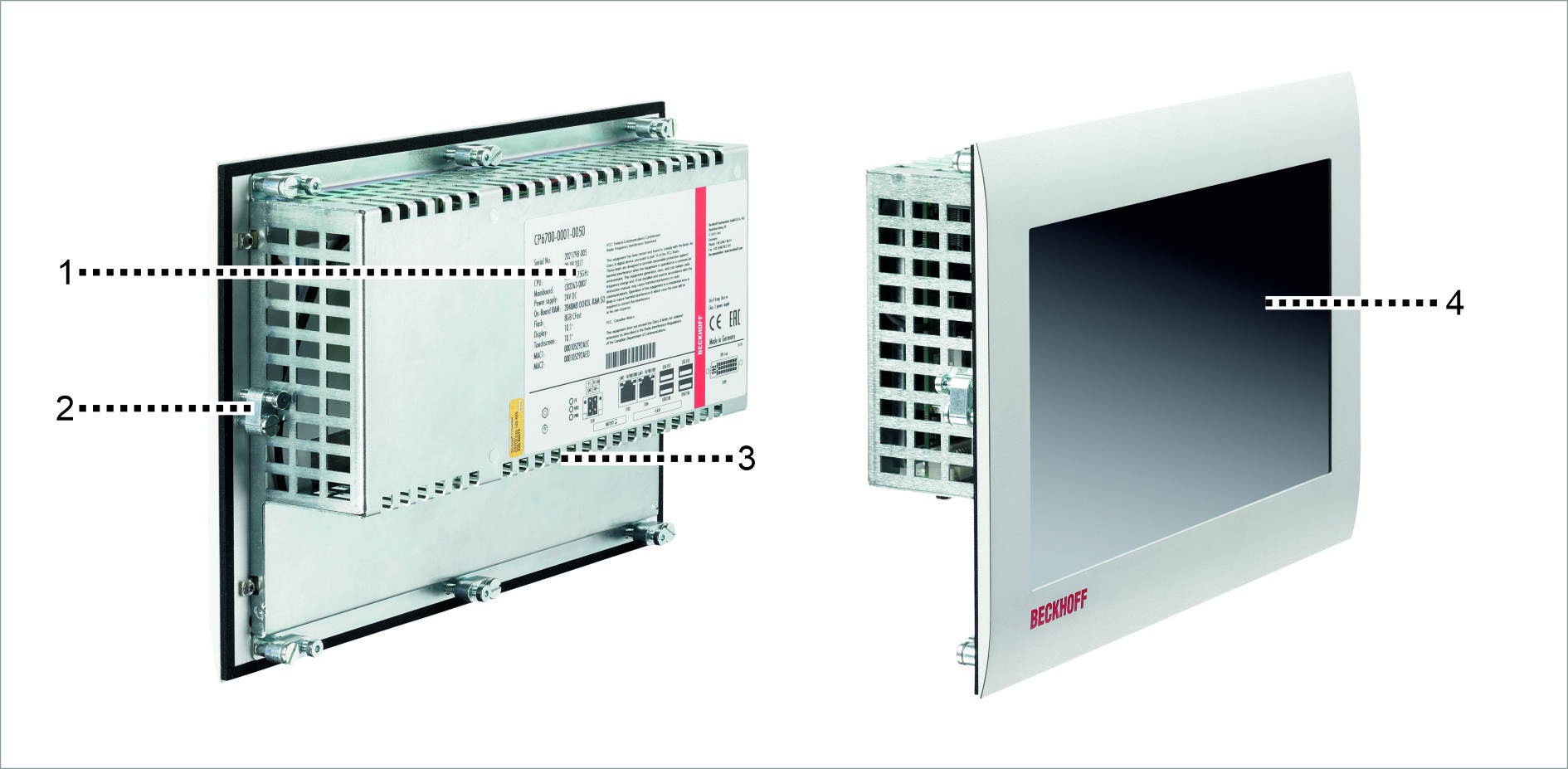

The figure shows an example of the panel PC's structure.
Fig.2: StructureNo. | Component | Description |
|---|---|---|
1 | Name plate | Information on the equipment of the panel PC |
2 | Clamping lever | Mounting the panel PC in the control cabinet wall |
3 | Access to interfaces | Interfaces on the underside |
4 | Display and touch screen glass | Operation of the panel PC |
You can optionally order the device with a stainless steel front:
- CP6700-1400

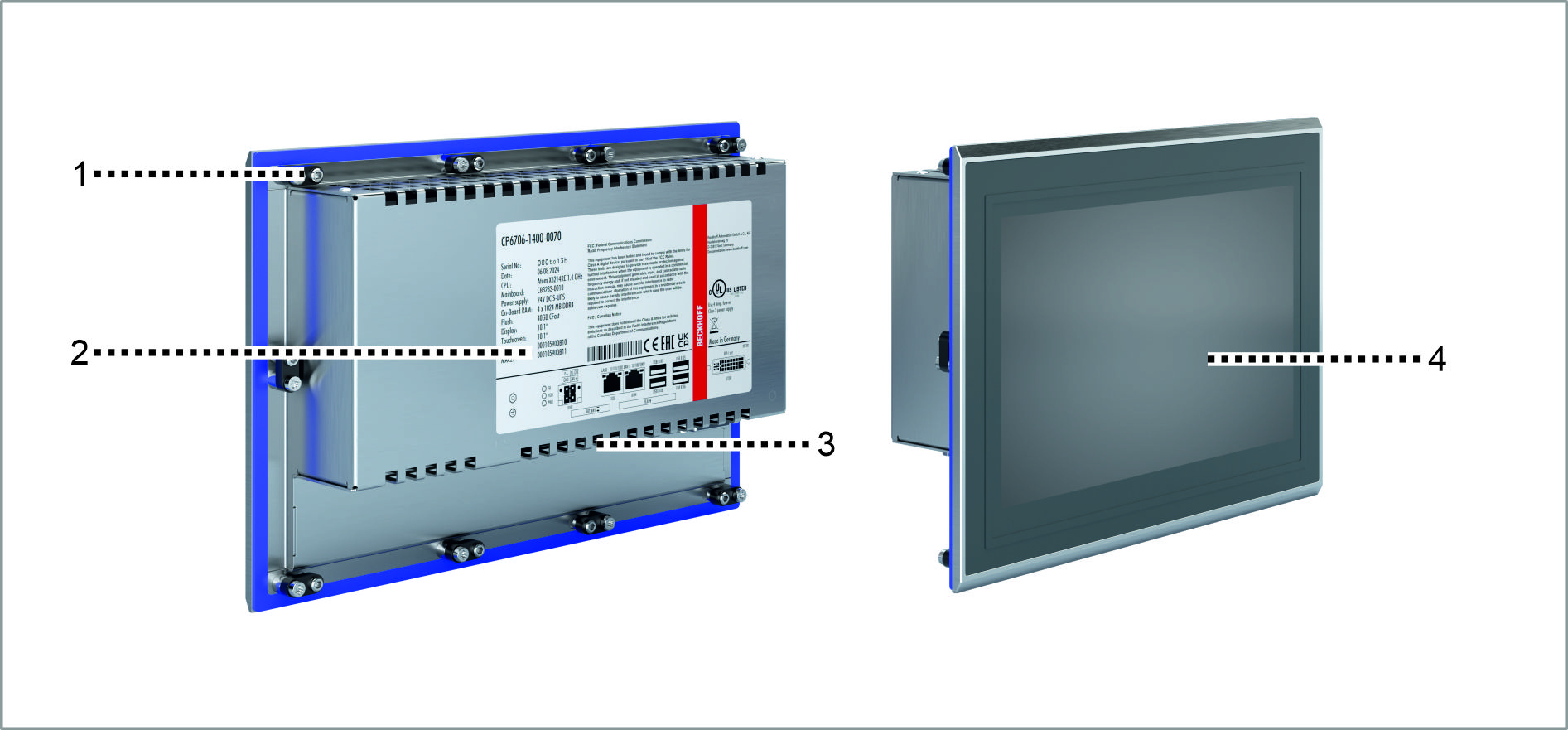

The following figure shows the structure of a stainless steel device.
Fig.3: Structure stainless steel deviceNo. | Component | Description |
|---|---|---|
1 | Clamping lever | Mounting the panel PC in the control cabinet wall |
2 | Name plate | Information on the equipment of the panel PC |
3 | Access to interfaces | Interfaces on the underside |
4 | Display and touch screen glass | Operation of the panel PC |
