Structure

The figure shows an example of the panel PC's structure.

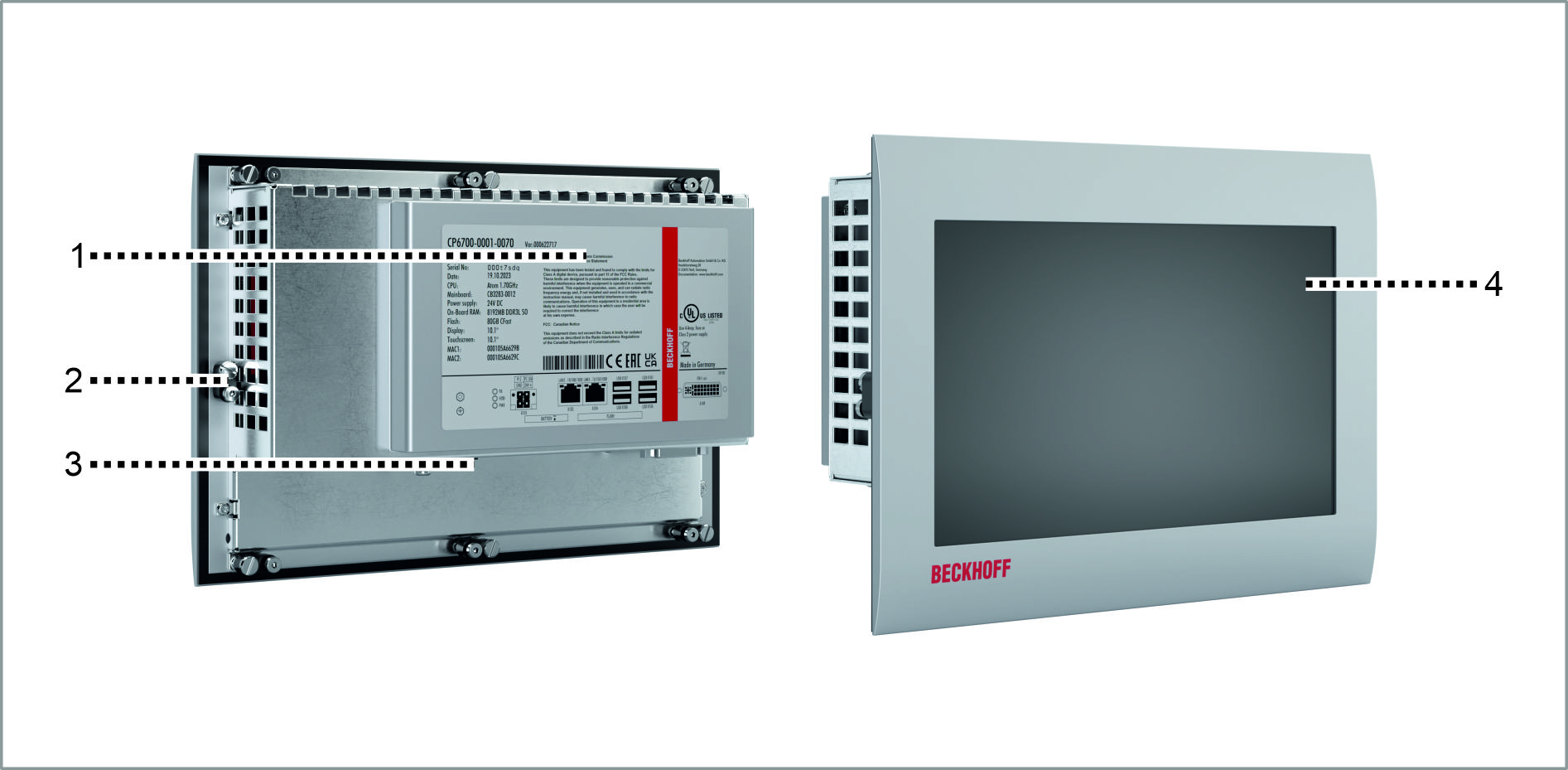

Structure 1:Fig.1: Structure

You can optionally order the device with a stainless steel front:

The following figure shows the structure of a stainless steel device.

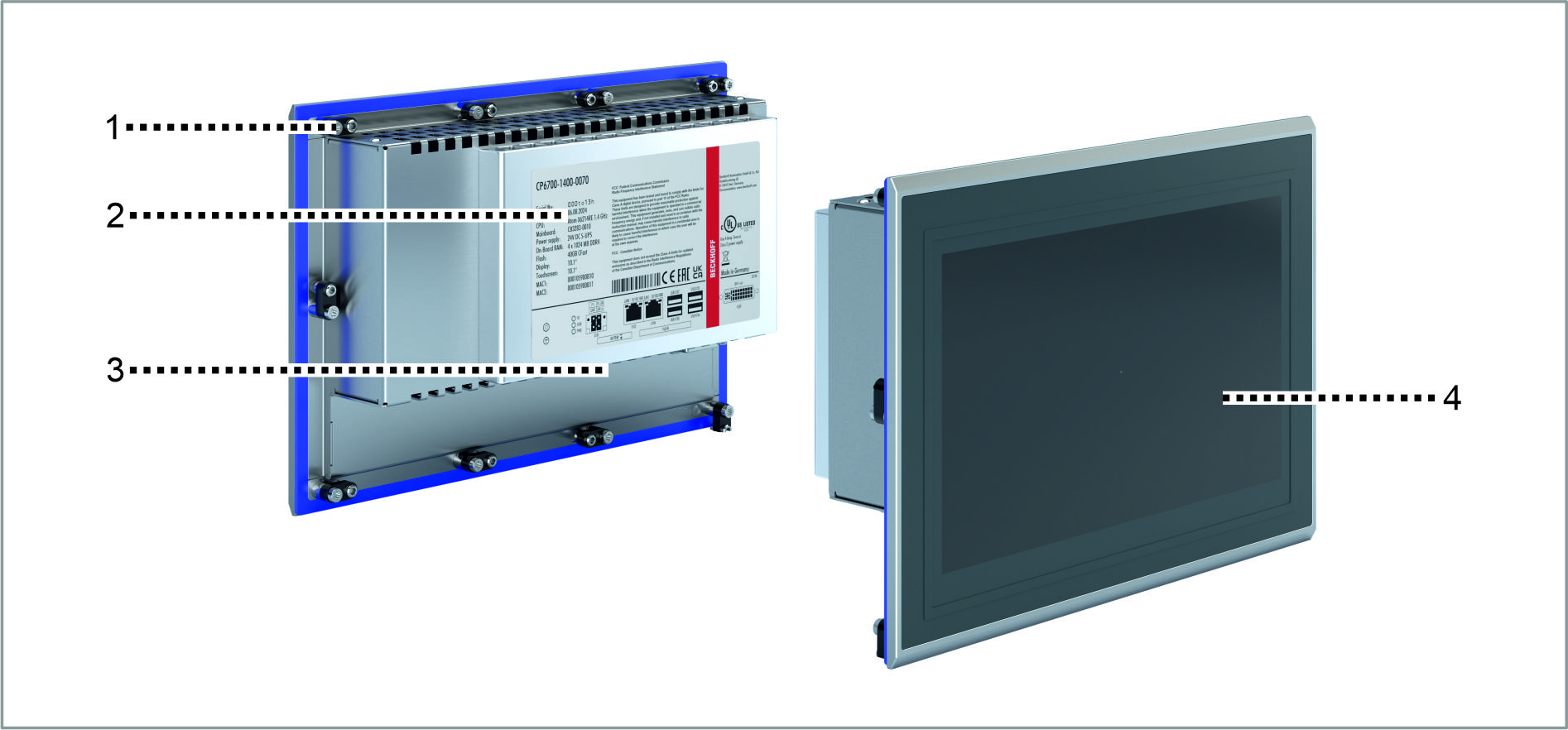

Structure 2:Fig.2: Structure stainless steel device
Legend structure stainless steel device

No.

Component

Description

1

Clamping lever

Mounting the panel PC in the control cabinet wall

2

Name plate

Information on the equipment of the panel PC

3

Access to interfaces

Interfaces on the underside

4

Display and touch screen glass

Operation of the panel PC
