Name plate
The name plate provides information about the equipment of the device. The name plate shown here serves only as an example.

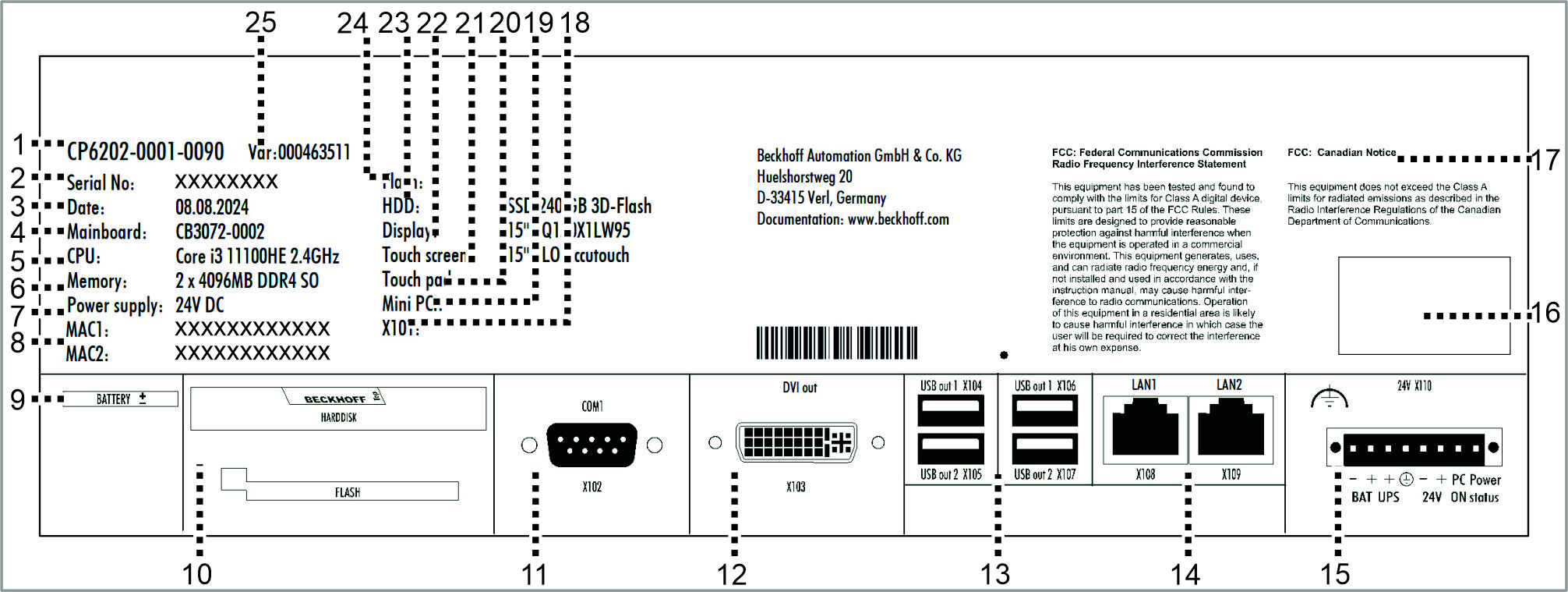

Fig.20: Name plateNo. | Description |
|---|---|
1 | Model: the last four digits indicate the device generation. |
2 | Serial number = Beckhoff Traceability Number (BTN) |
3 | Date of manufacture |
4 | Mainboard |
5 | CPU |
6 | Main memory |
7 | Power supply |
8 | MAC addresses of the Ethernet interfaces (X108, X109) |
9 | Battery |
10 | Hard disk, CFast |
11 | Serial interface |
12 | DVI interface |
13 | USB interfaces (X104 - X107) |
14 | Ethernet interfaces (X108, X109) |
15 | Power supply connection (X110) |
16 | Symbols Note: Here are the symbols applicable to the device such as CE, EAC, UKCA, |
17 | FCC approval |
18 | Optional additional interface X101 |
19 | Mini PCI |
20 | Touch pad |
21 | Touch screen |
22 | Display |
23 | Hard disk |
24 | Storage medium |
25 | Variant number: commercial number of the order code including ordering options |
. The approvals of your device can be found on the name plate and in chapter 10.2
