Name plate

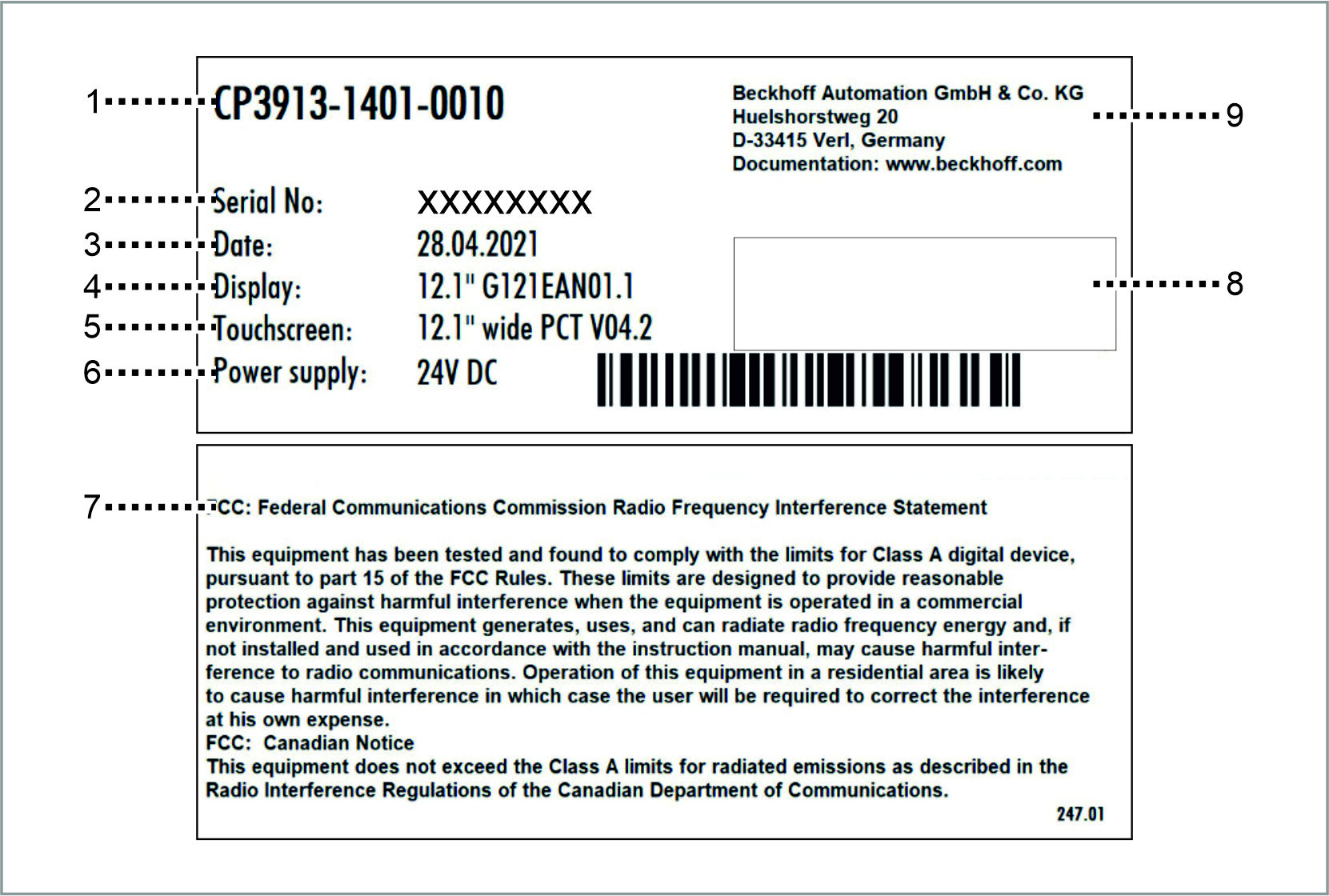

The name plate provides information about the control panel equipment. The name plate shown here serves only as an example.
No. | Description |
|---|---|
1 | Model: The last four digits indicate the device generation |
2 | Serial number (BTN) |
3 | Date of manufacture |
4 | Display |
5 | Touch screen |
6 | Power supply 24 VDC, NEC class 2 |
7 | FCC approval |
8 | Symbols Note: Here are the symbols applicable to the device such as CE, EAC, UKCA, |
9 | Address of the vendor |
. The approvals of your device can be found on the name plate and in chapter 10.2 Approvals.
