Structure

The following figure shows an example of the structure of the device for all device versions.

The control panel connection interfaces vary, depending on the product version. The CP3921-1512-00x0 device also has a side-mounted LED status bar. The CP3921-1513-00x0 does not have an LED status bar. Otherwise, there are no other differences in the external design of the device.

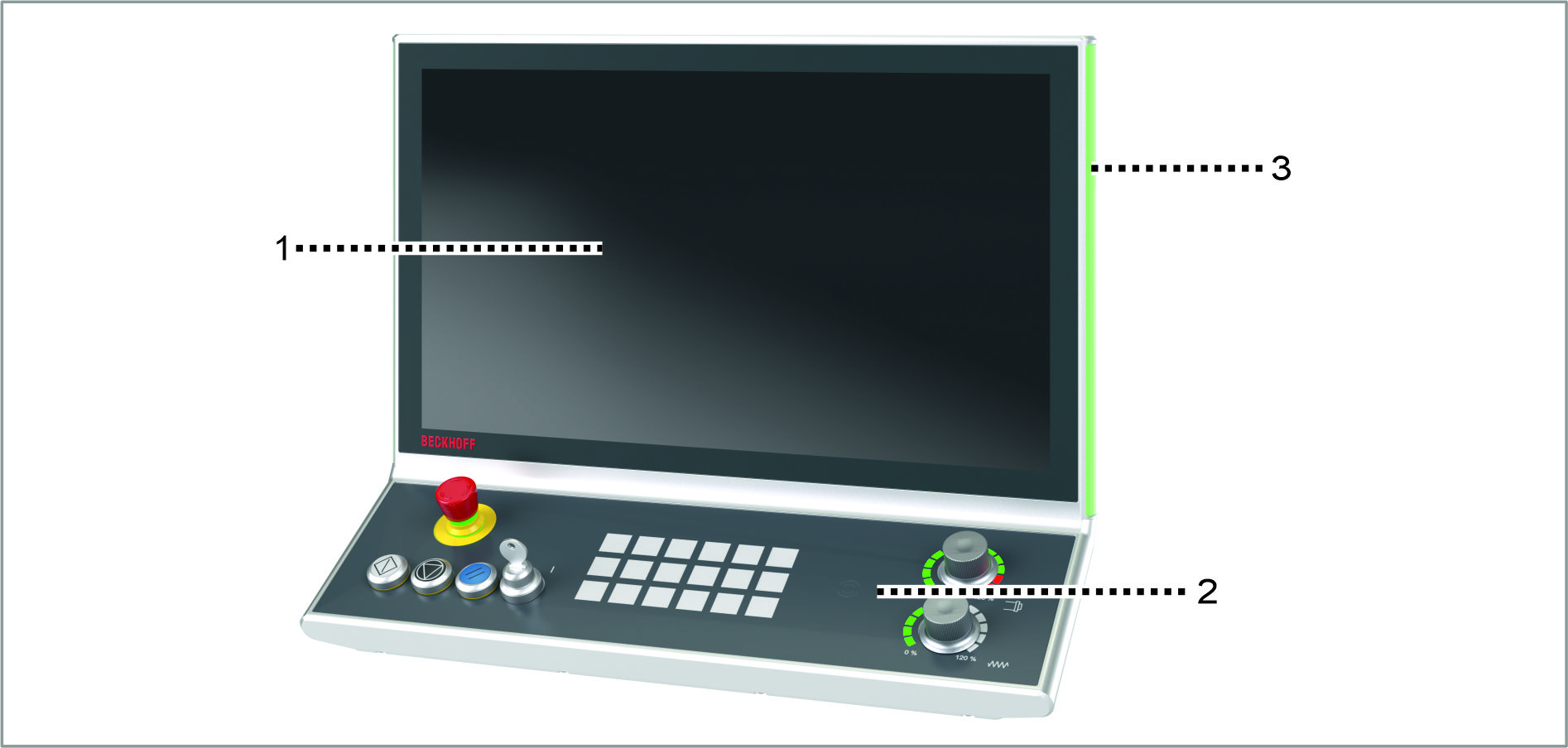

Structure 1:Fig.4: Structure
Legend structure

No.

Component

Description

1

Display and touch screen glass

Operating the control panel

2

Push-button extension

Control of central machine or system functions

3

Side LED status bar (only for CP3921-1512)

Status of the machine; exact meaning freely selectable
