Name plate

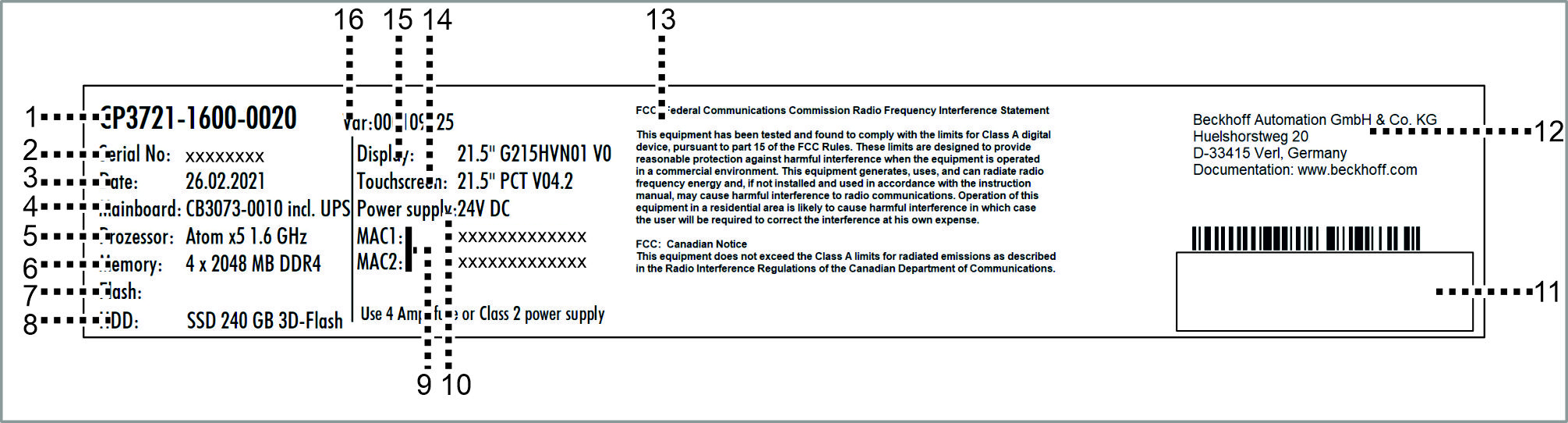

The name plate provides information about the equipment of your panel PC. The name plate shown here serves only as an example.
No. | Description |
|---|---|
1 | Model: the last four digits indicate the product variant. |
2 | Serial number (BTN) |
3 | Date of manufacture |
4 | Mainboard |
5 | CPU |
6 | Main memory |
7 | CFast |
8 | Hard disk |
9 | MAC addresses of the Ethernet interfaces |
10 | Power supply: 24 VDC, NEC class 2 |
11 | Symbols Note: Here are the symbols applicable to the device such as CE, EAC, UKCA, |
12 | Address of the vendor |
13 | FCC approval |
14 | Touch screen |
15 | Display |
16 | Variant number: commercial number of the order code including ordering options |
. The approvals of your device can be found on the name plate and in chapter 10.2
