Name plate

The name plate provides you with information on the equipment of the control panel. The name plate shown here is only an example.

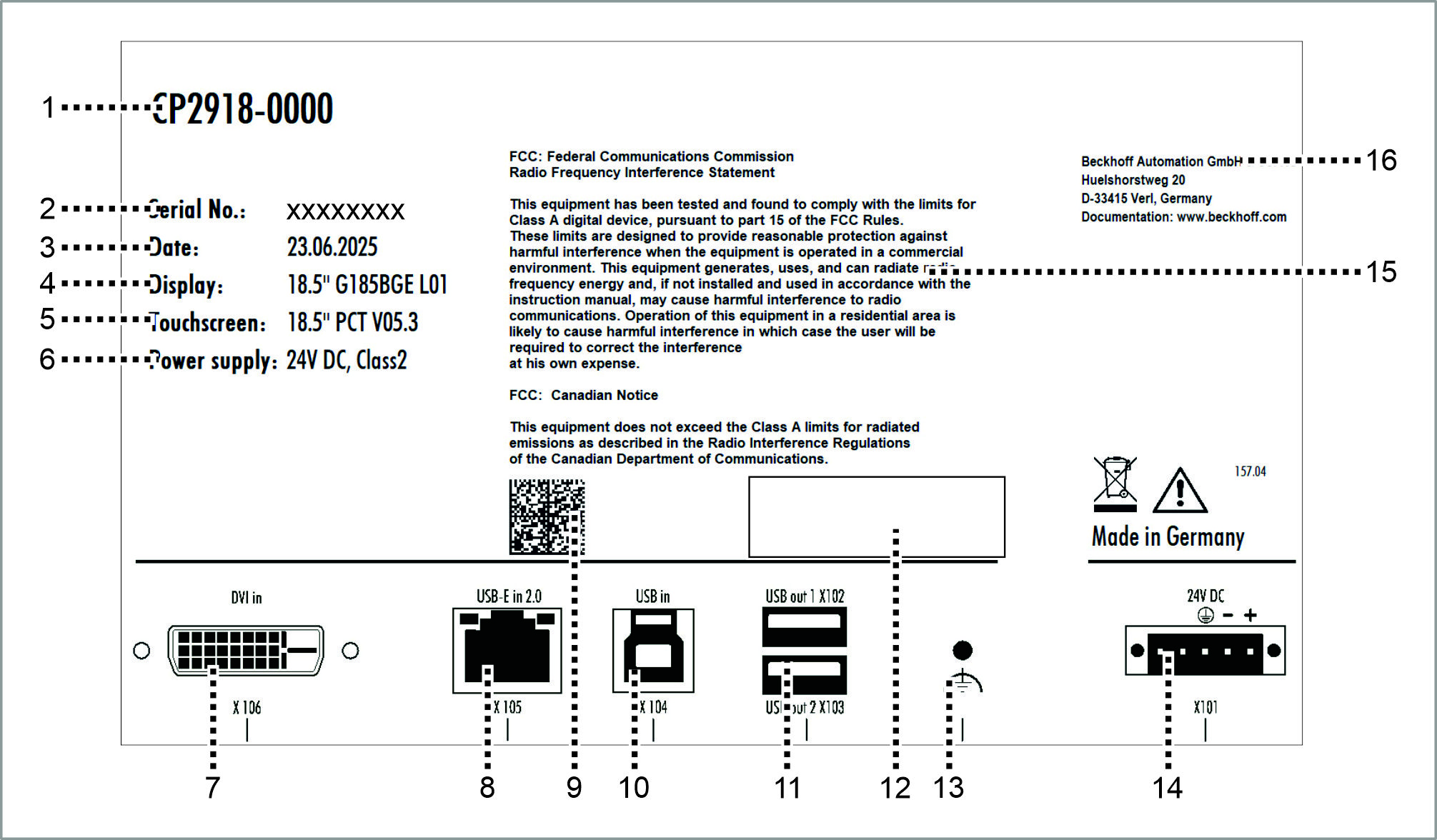

Name plate 1:Fig.17: Name plate example
Name plate legend

No.

Description

1

Model: the last four digits indicate the product variant.

2

Serial number = Beckhoff Traceability Number (BTN)

3

Date of manufacture

4

Display

5

Touch screen

6

Power supply: 24 VDC, NEC class 2

7

DVI Extended interface (X106)

8

USB Extended Interface (X105)

9

BIC

10

USB input (X104)

11

USB output (X102, X103)

12

Symbols
Note: The symbols applicable to the device such as CE, EAC, UKCA, Name plate 2: are located here. The approvals of your device can be found on the name plate and in chapter 9.2 Approvals.

13

Ground connection for functional earthing of the control panel

14

Connection of the power supply and protective earth of the control panel (X101)

15

FCC approval

16

Manufacturer’s address
