Structure

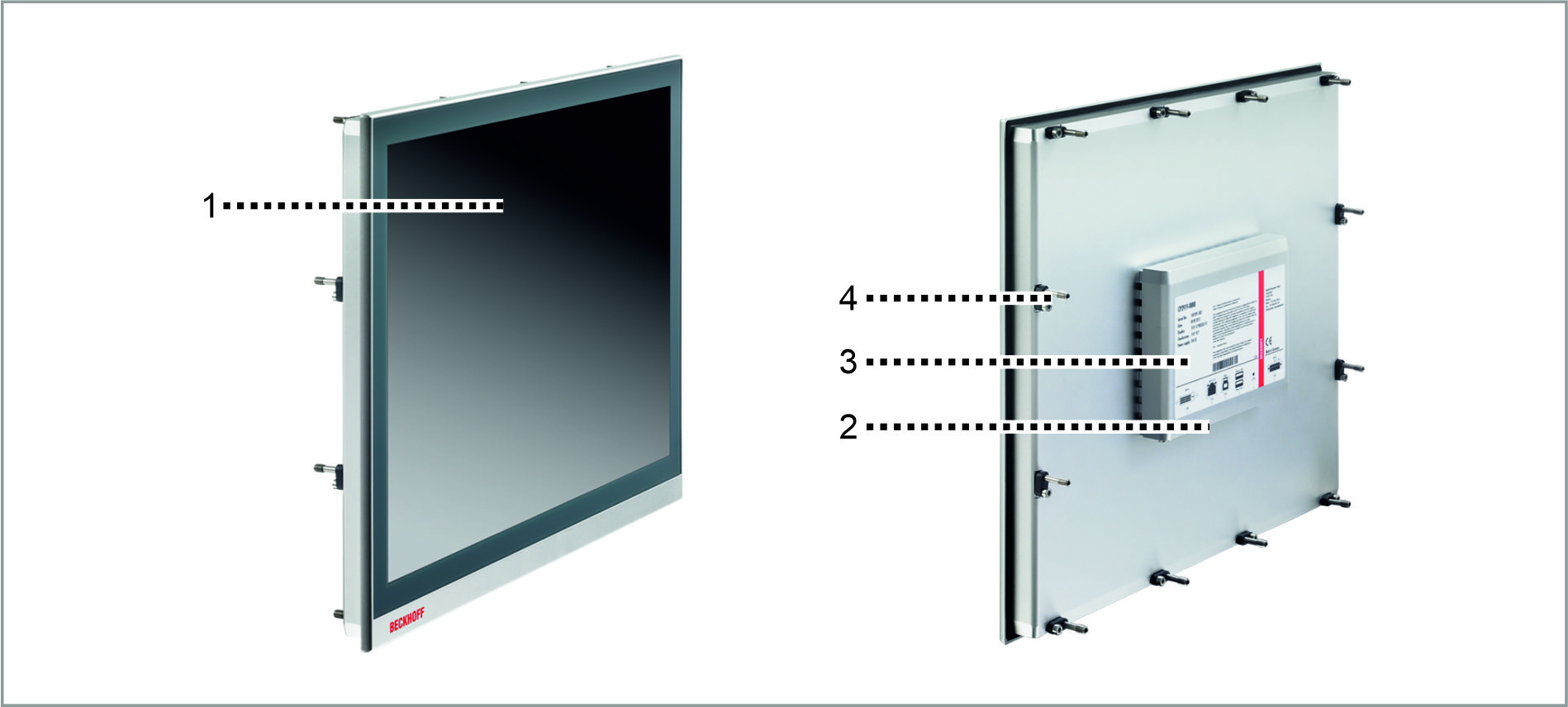

Figure 2 shows the device configuration as an example of all CP29xx versions.
Depending on the product version, the interfaces of the control panel on the connection block vary. Otherwise, there are no differences in the external design of the device.
No. | Component | Description |
|---|---|---|
1 | Display and touch screen glass | Operating the control panel |
2 | Clamping lever | Mounting the control panel in the control cabinet |
3 | Connection block | Access to the interfaces |
4 | Name plate | Information on the control panel equipment |
5 | Power supply (X101) | Connection of the power supply and protective earth of the control panel |
6 | Grounding bolt | Functional earth of the control panel |
7 | USB output (X102, X103) | Connection of peripheral devices |
8 | USB input (X104) | Connection of control panel and industrial PC up to a maximum of 5 m |
9 | RJ45 for USB Extended (X105) | Connection of control panel and CU8801 USB-to-USB extended converter box over up to 50 m |
10 | DVI input (X106) | Transmission of DVI from industrial PC to control panel over up to 50 m |
Optionally, you can order the following devices with a stainless steel front instead of an aluminum front. For this you need to order the device itself and the ordering option below:
- CP2907 (ordering option stainless steel front: C9900-F941)
- CP2913 (ordering option stainless steel front: C9900-F942)
- CP2916 (ordering option stainless steel front: C9900-F945)
- CP2918 (ordering option stainless steel front: C9900-F946)
- CP2921 (ordering option stainless steel front: C9900-F948)

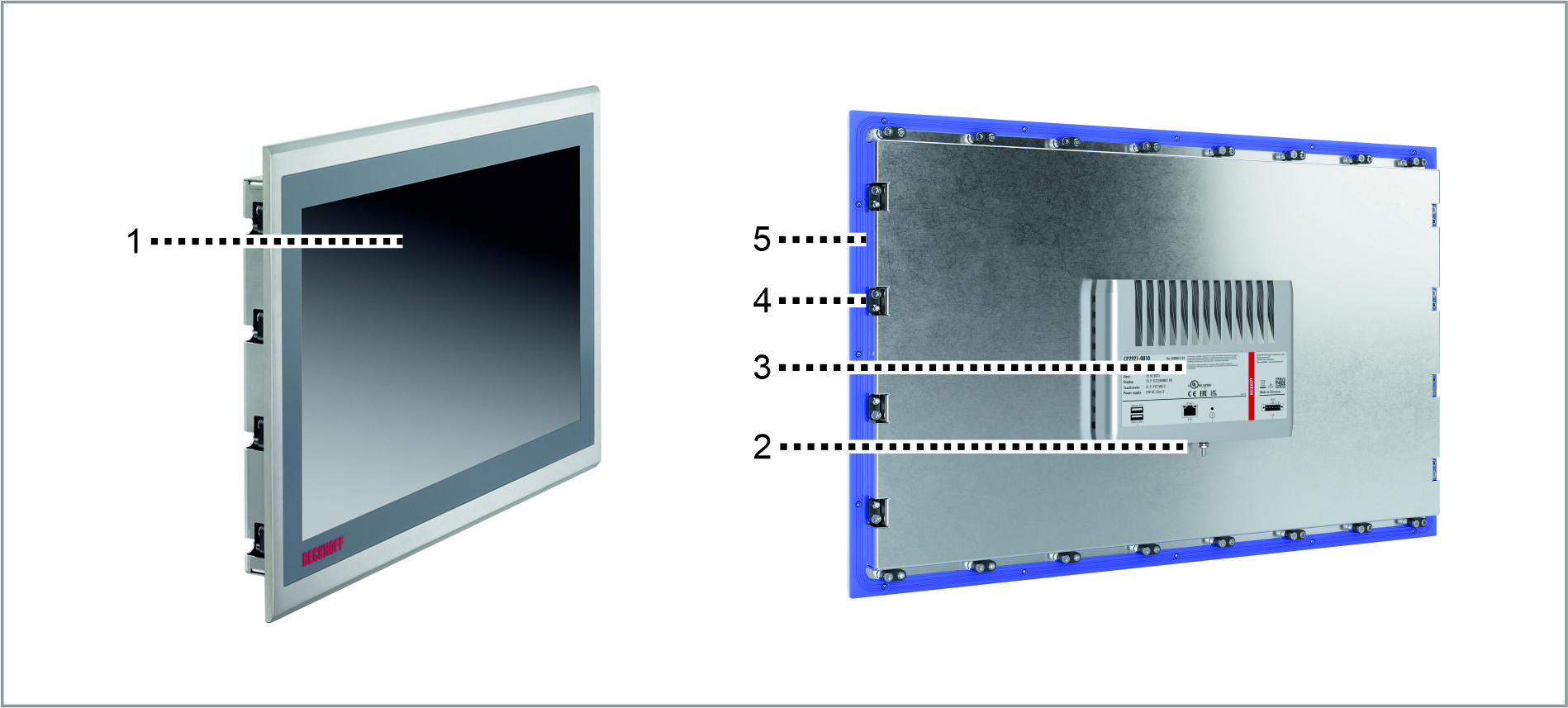

The following figure shows the structure of a stainless steel device:
No. | Component | Description |
|---|---|---|
1 | Clamping lever | Mounting the control panel in the control cabinet wall |
2 | Silicone seal | Protection of the connection section from moisture |
3 | Name plate | Information on the control panel equipment |
4 | Access to interfaces | Interfaces on the underside |
5 | Display and touch screen glass | Operating the control panel |
6 | Stainless steel front | Use in environments with higher hygiene requirements |
