Structure

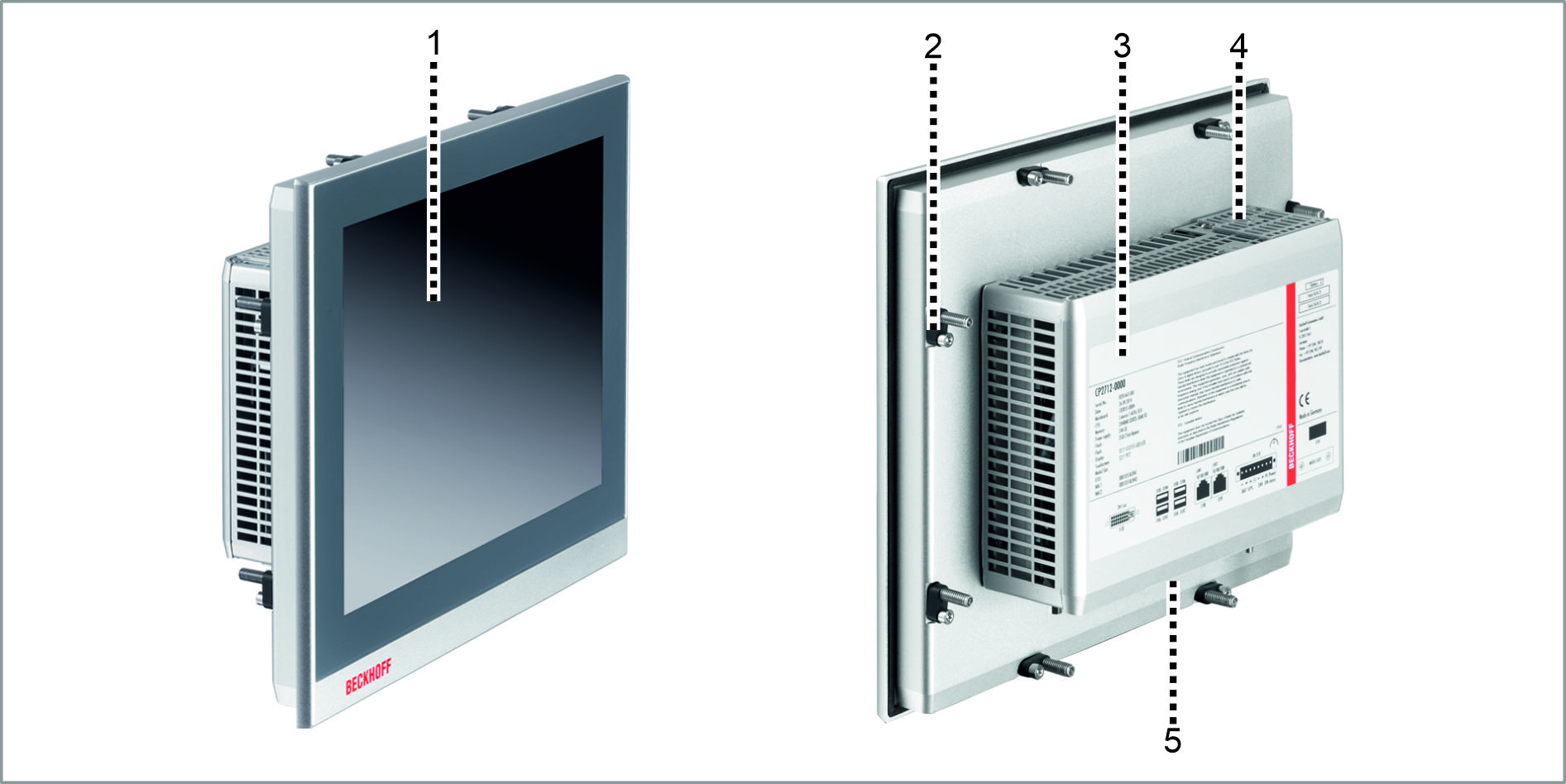

Fig.2: StructureNo. | Component | Description |
|---|---|---|
1 | Display and touch screen glass | Operation of the panel PC |
2 | Clamping lever | Mounting the panel PC in the control cabinet wall |
3 | Name plate | Information on the equipment of the panel PC |
4 | Access to battery and storage media | Battery and storage media behind cover |
5 | Access to interfaces | Interfaces on the underside |
Optionally, you can order the following devices with a stainless steel front instead of an aluminum front. For this you need to order the device itself and the ordering option below:
- CP2713 (stainless steel front ordering option: C9900-F942)
- CP2716 (stainless steel front ordering option: C9900-F945)
- CP2718 (stainless steel front ordering option: C9900-F946)
- CP2721 (stainless steel front ordering option: C9900-F948)

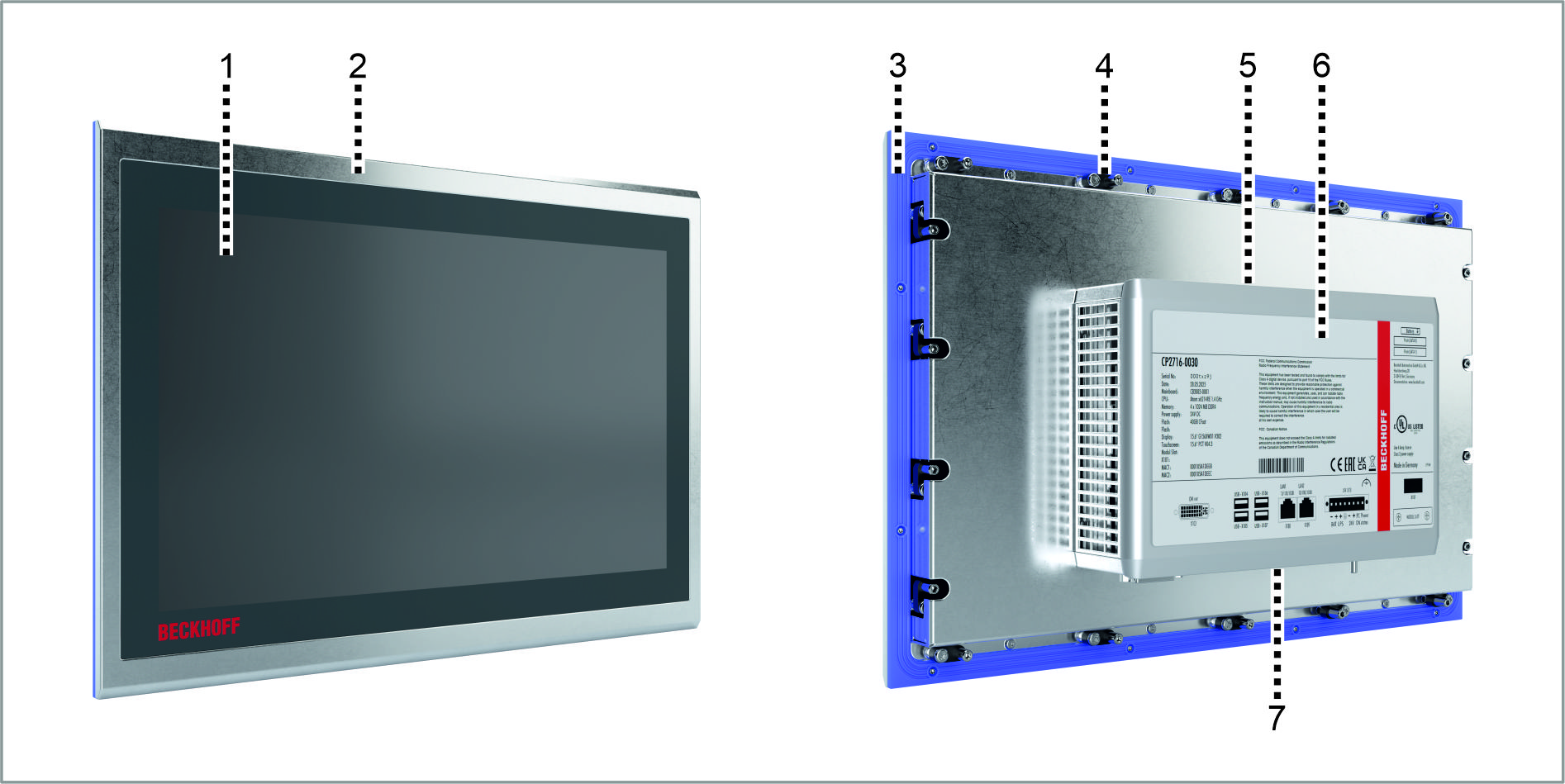

The following figure shows the structure of a stainless steel model.
Fig.3: Structure stainless steel modelNo. | Component | Description |
|---|---|---|
1 | Display and touch screen glass | Operating the device |
2 | Stainless steel front | Use in environments with higher hygiene requirements |
3 | Silicone seal | Protection of the connection section from moisture |
4 | Clamping lever | Mounting the panel PC in the control cabinet wall |
5 | Access to battery and storage media | Battery and storage media behind cover |
6 | Name plate | Information on the equipment of the panel PC |
7 | Access to interfaces | Interfaces on the underside |
