Name plate
The name plate provides information on the equipment fitted to your industrial PC. The name plate shown here serves only as an example.

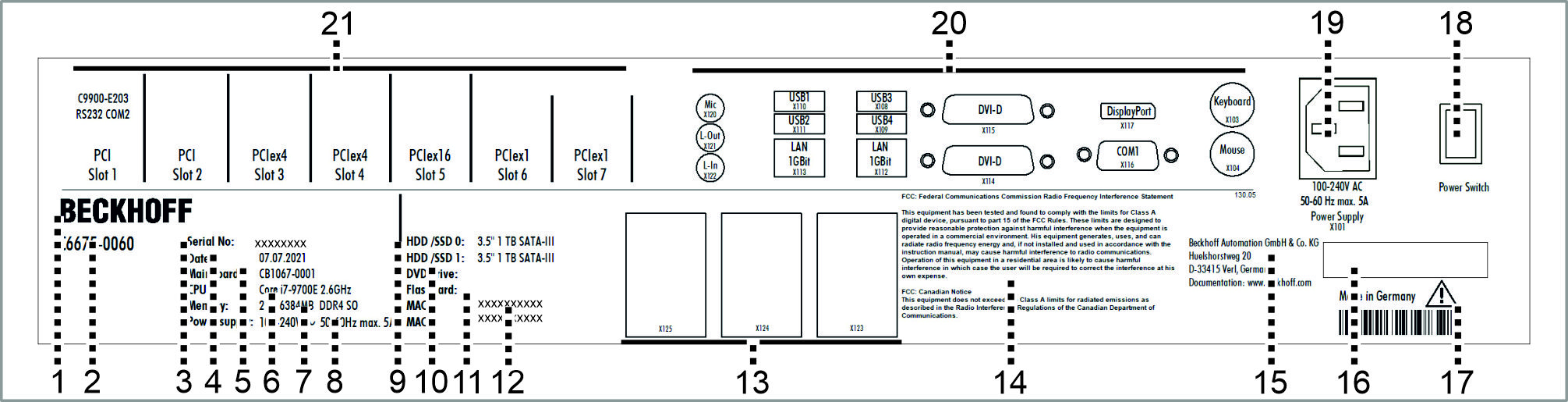

Fig.12: Name plateNo. | Description |
|---|---|
1 | Vendor |
2 | Model: The last four digits indicate the device generation |
3 | Serial number = Beckhoff Traceability Number (BTN) |
4 | Date of manufacture |
5 | Mainboard |
6 | CPU |
7 | Main memory |
8 | Power supply |
9 | HDD/SSD |
10 | DVD drive |
11 | Storage media |
12 | MAC addresses of the Ethernet interfaces (X112, X113) |
13 | Optional interfaces |
14 | FCC approval |
15 | Address of the vendor |
16 | Symbols Note: Here are the symbols applicable to the device such as CE, EAC, UKCA, |
17 | Note: be sure to read the device manual. |
18 | Main switch for switching the PC on and off |
19 | Power supply connection |
20 | Connection section standard interfaces |
21 | Plug-in card slots for options |
. The approvals of your device can be found on the name plate and in chapter 10.2 Approvals.
