Name plate
The name plate provides information about the equipment of the device. The name plate shown here serves only as an example.

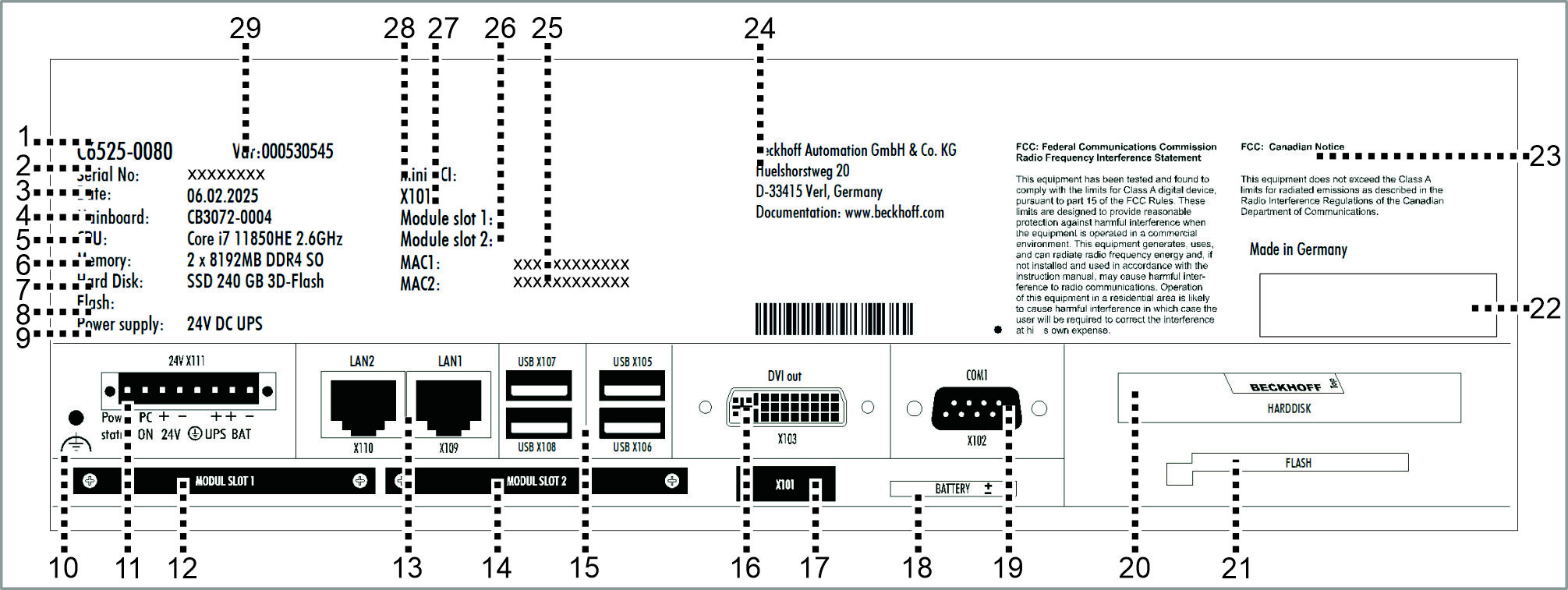

Fig.22: Name plateNo. | Description |
|---|---|
1 | Model: the last four digits indicate the device generation. |
2 | Serial number = Beckhoff Traceability Number (BTN) |
3 | Date of manufacture |
4 | Mainboard |
5 | CPU |
6 | Main memory |
7 | Hard disk |
8 | Storage medium |
9 | Power supply |
10 | Grounding bolt for functional earthing |
11 | Power supply connection (X111) |
12 | Optional PCIe® module slot 1 |
13 | Ethernet interfaces (X109, X110) |
14 | Optional PCIe® module slot 2 |
15 | USB interfaces (X105-X108) |
16 | DVI interface (X103) |
17 | Optional interface (X101) |
18 | Battery slot |
19 | Serial interface (X102) |
20 | Hard disk slot |
21 | CFast slot |
No. | Description |
|---|---|
22 | Symbols Note: Here are the symbols applicable to the device such as CE, EAC, UKCA, |
23 | FCC approval |
24 | Address of the vendor |
25 | MAC addresses of the Ethernet interfaces (X109, X110) |
26 | Optional module slots |
27 | Optional interface |
28 | Mini PCI |
29 | Variant number: commercial number of the order code including ordering options |
. The approvals of your device can be found on the name plate and in chapter 10.2 Approvals.
