Name plate
The name plate provides information about the equipment of the device. The name plate shown here serves only as an example.

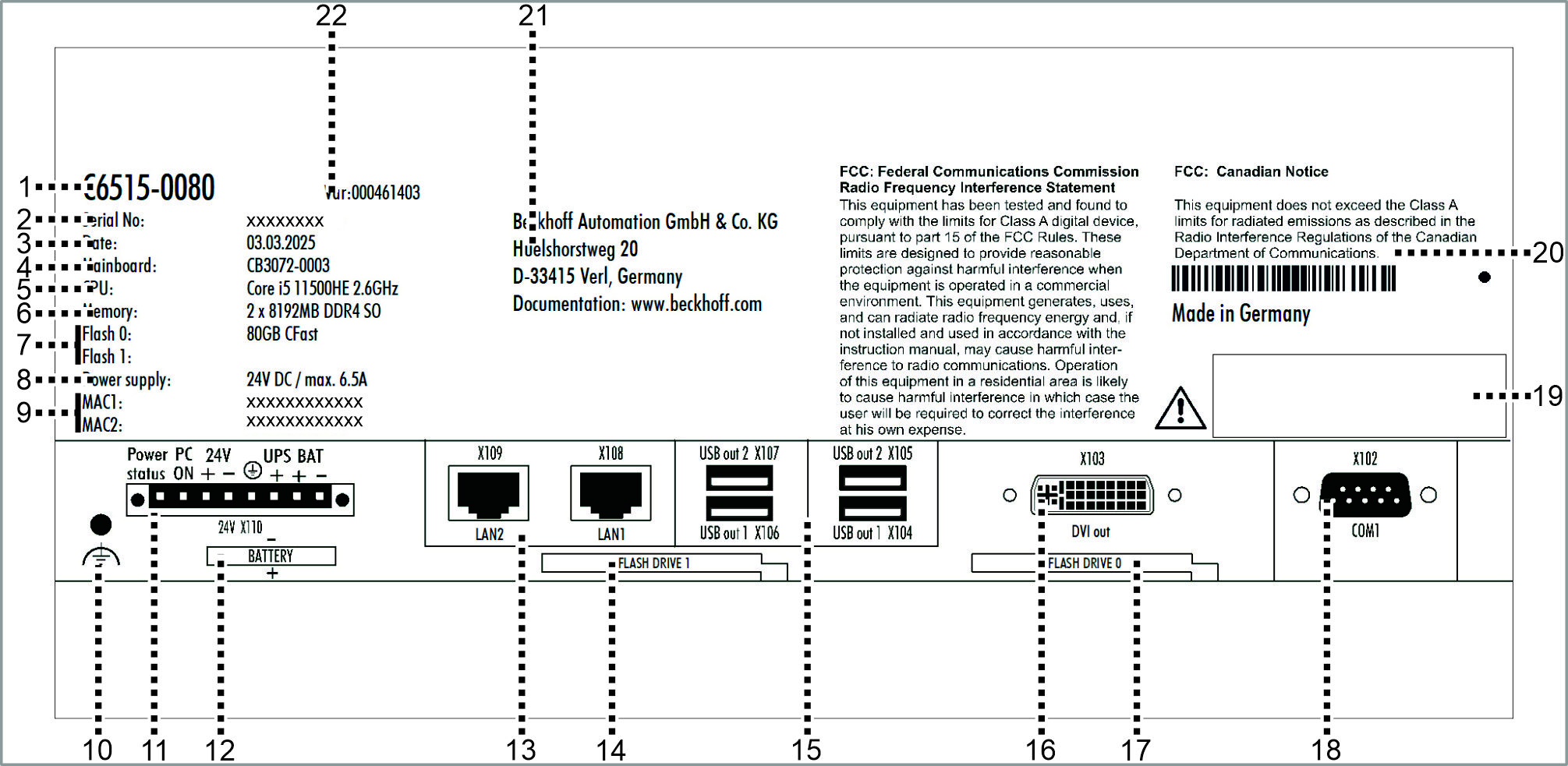

Fig.22: Name plateNo. | Description |
|---|---|
1 | Model: the last four digits indicate the device generation. |
2 | Serial number = Beckhoff Traceability Number (BTN) |
3 | Date of manufacture |
4 | Mainboard |
5 | CPU |
6 | Main memory |
7 | CFast |
8 | Power supply |
9 | MAC addresses of the Ethernet interfaces (X108, X109) |
10 | Grounding bolt for functional earthing |
11 | Power supply connection (X110) |
12 | Battery slot |
13 | Ethernet interfaces (X108, X109) |
14 | Slot 2. CFast |
15 | USB interfaces (X104 - X107) |
16 | DVI interface (X103) |
17 | Slot 1. CFast |
18 | Serial interface (X102) |
No. | Description |
|---|---|
19 | Symbols Note: Here are the symbols applicable to the device such as CE, EAC, UKCA, |
20 | FCC approval |
21 | Address of the vendor |
22 | Variant number: commercial number of the order code including ordering options |
. The approvals of your device can be found on the name plate and in chapter 10.2 Approvals.
