Name plate

The name plate provides information on the equipment fitted to the industrial PC. The name plate shown here serves only as an example.

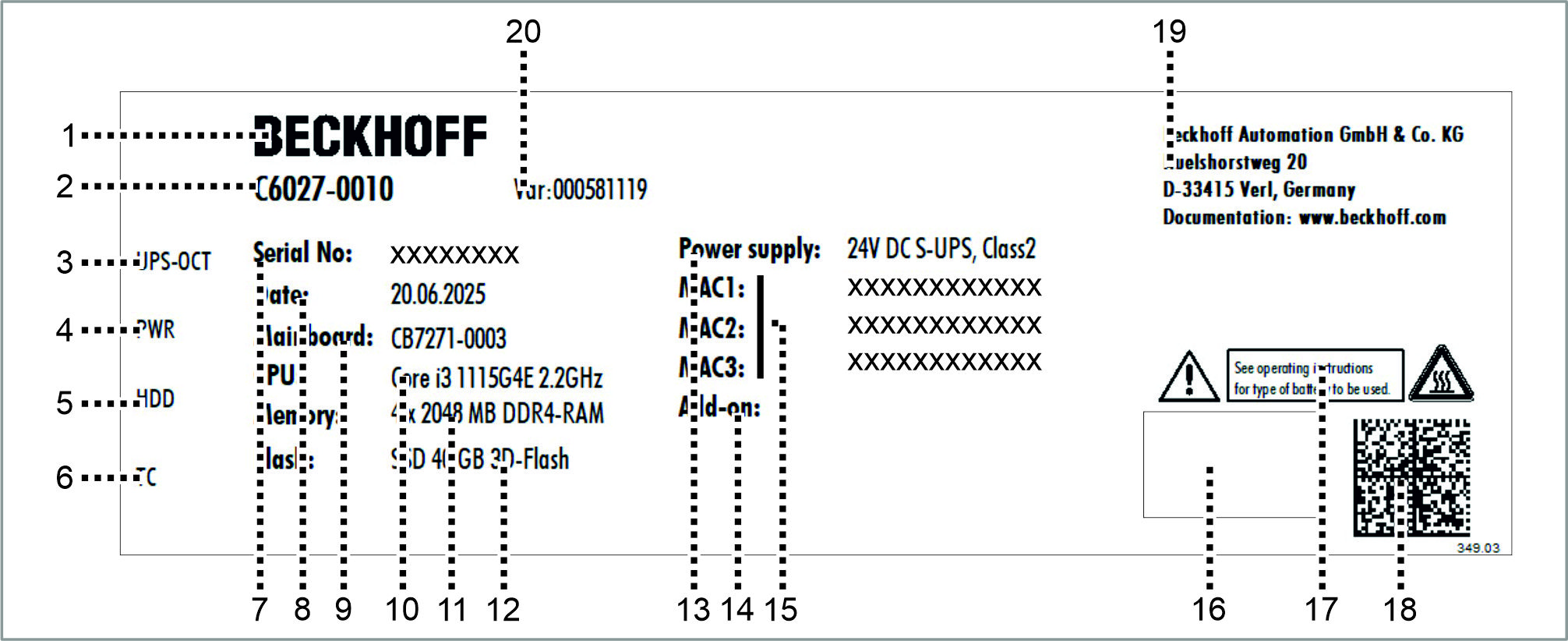

Name plate 1:Fig.9: Name plate
Legend for C6027 name plate

No.

Description

1

Vendor

2

Model: The last four digits indicate the device generation.

3

UPS-OCT LED

4

Power LED

5

HDD LED

6

TC LED

7

Serial number = Beckhoff Traceability Number (BTN)

8

Date of manufacture

9

Mainboard

10

CPU

11

Main memory

12

SSD

13

Power supply: 24 VDC, NEC class 2

14

Optional extension

15

MAC addresses of the Ethernet interfaces (X102–X104)

16

Symbols

Note: The symbols applicable to the device such as CE, EAC, UKCA, Name plate 2: are located here. The approvals of your device can be found on the name plate and in chapter 10.2 Approvals.

17

Note: Be sure to read the device manual.

18

BIC

19

Manufacturer’s address

20

Variant number: commercial number of the order code including ordering options
