Structure

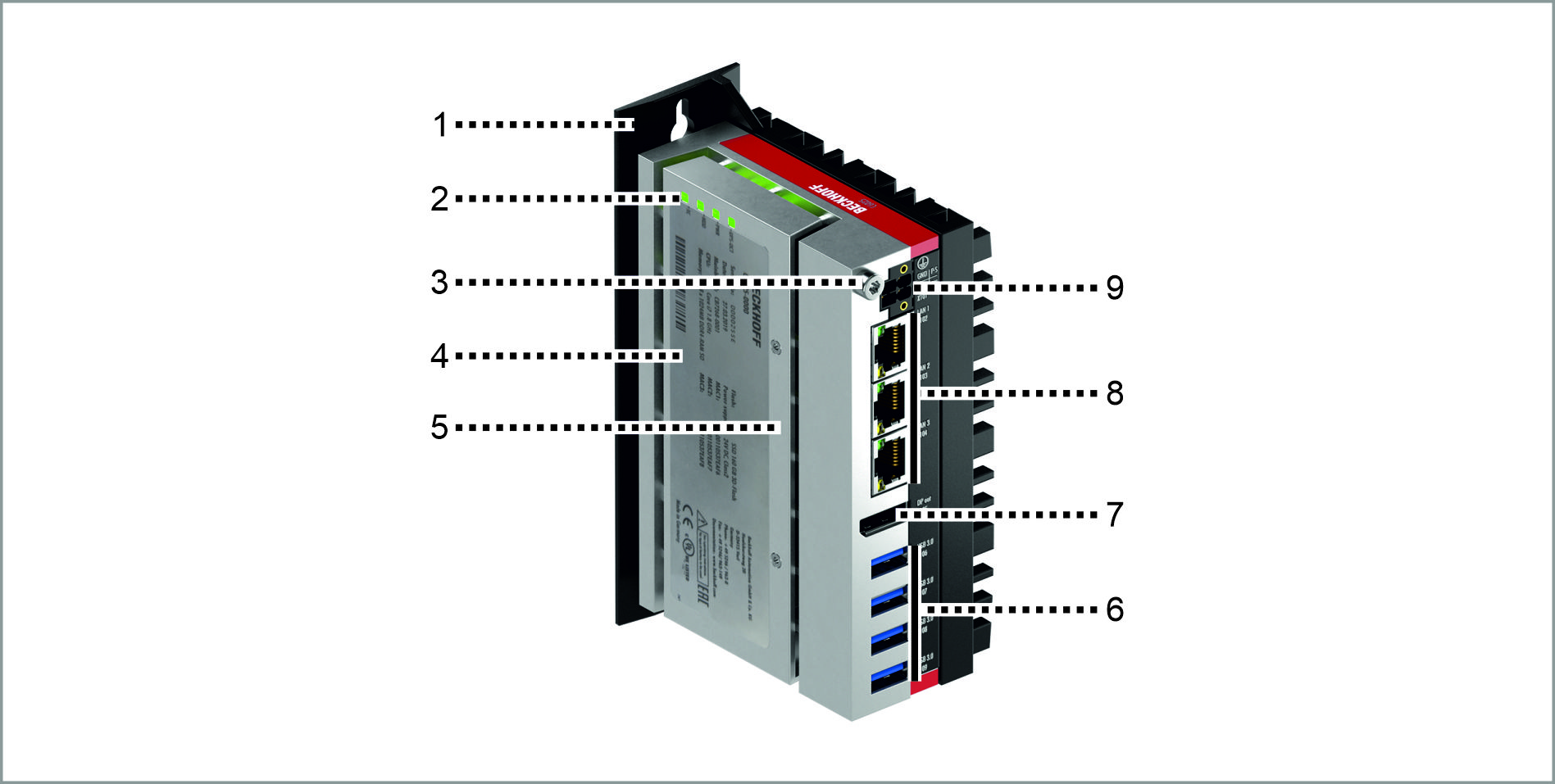

No. | Component | Description |
|---|---|---|
1 | Mounting plate | Plate for mounting the industrial PC via the rear panel in the control cabinet |
2 | Status LEDs | Status display for UPS-OCT, power, mass storage device, TwinCAT |
3 | Protective conductor connection PE | Low-resistance protective earthing and functional earthing of the industrial PC |
4 | Name plate | Information on the equipment of the industrial PC |
5 | Side cover | Access to battery and storage medium |
6 | USB interfaces (X106-X109) | Connection of peripheral devices |
7 | DisplayPort (X105) | Transmission of the video signal |
8 | Ethernet interfaces RJ45 (X102 - X104) | Connection of the industrial PC to a 100/1000BASE-T network |
9 | Power supply (X101) | Connection of the power supply and external wiring of the industrial PC |
No. | Component | Description |
|---|---|---|
1 | Protective conductor connection PE | Low-resistance protective earthing and functional earthing of the industrial PC |
2 | Power supply (X101) | Connection of the power supply and external wiring of the industrial PC |
3 | Status LEDs | Status display for UPS-OCT, power, mass storage device, TwinCAT |
4 | Ethernet interfaces RJ45 (X102-X107) | Connection of the industrial PC to a 100/1000/2500BASE-T network or 100/1000BASE-T network |
5 | USB interfaces (X108-X113) | Connection of peripheral devices |
6 | DisplayPorts (X114, X115) | Transmission of the video signal |
7 | Optional Ethernet PCIe compact module | Optional PCIe compact module slot for interface expansion of the industrial PC |
8 | Optional graphics card with DisplayPort interfaces | Slot for optional graphics cards with MXM interface |
