Name plate

The name plate provides information on the equipment fitted to the industrial PC. The name plate shown here serves only as an example.

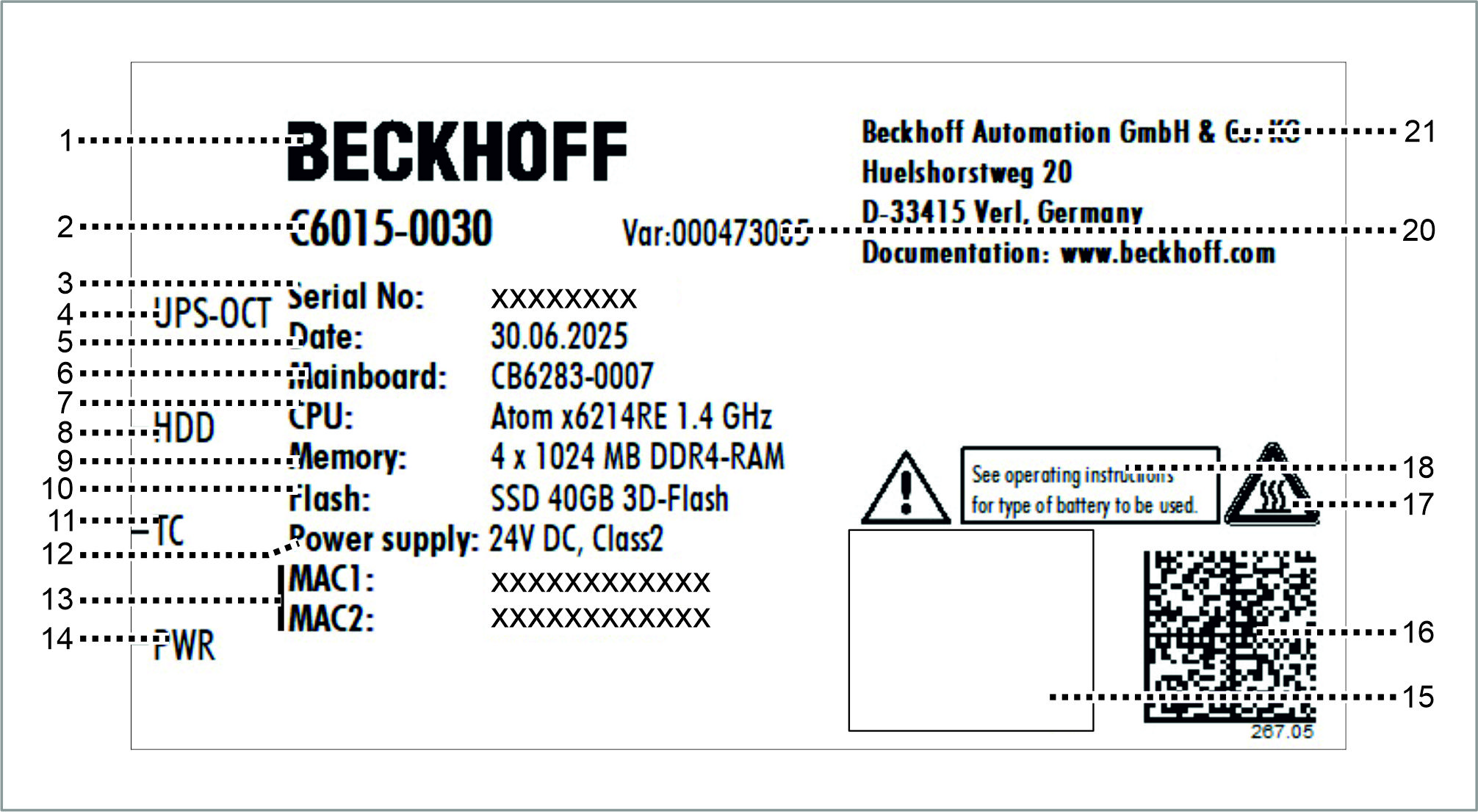

Name plate 1:Fig.7: Name plate
Legend for C6015 name plate

No.

Description

1

Vendor

2

Model: The last four digits indicate the device generation

3

Serial number = Beckhoff Traceability Number (BTN)

4

UPS-OCT LED

5

Date of manufacture

6

Mainboard

7

CPU

8

HDD LED

9

Main memory

10

SSD

11

TC LED

12

Power supply: 24 VDC, NEC class 2

13

MAC addresses of the Ethernet interfaces (X102, X103)

14

Power LED

15

Symbols

Note: The symbols applicable to the device such as CE, EAC, UKCA, Name plate 2: are located here. The approvals of your device can be found on the name plate and in chapter 10.2 Approvals.

16

BIC

17

Warning: Hot surfaces!

18

Note: Be sure to read the device manual.

19

Variant number: commercial number of the order code including ordering options

20

Manufacturer’s address
