BX COM port - Cimrex panel

The serial interface of the BX controller can also be used as Modbus slave. In this example, a panel from the company Beijers is connected. Further information on the panel can be found under http://www.beijerelectronics.de.

BX COM port - Cimrex panel 1:

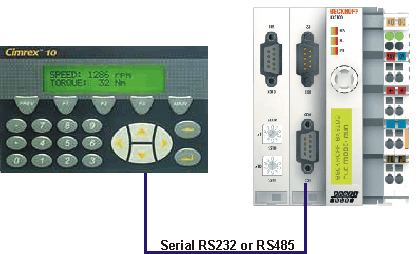

Cimrex panel at the COM port of the BX controller

Necessary components

RS232 cable

BX3100 COM 2 / RS485

Cimrex 12 RS232

7

2

8

3

9

5

RS485* cable

BX3100 COM 2 / RS 485

Cimrex 12 RS485

1

2 -3

6

15 -16

*) active termination resistor is not required for short cable lengths (≤ 5 m) and low baud rates (≤19200 baud)

BX COM port - Cimrex panel 2: Download sample program in ST for the BX: (sample file)

BX COM port - Cimrex panel 3: Download sample with Cimrex panel: (sample file)

The example requires the ModbusRTU, TcComPortBC and TcBaseBX libraries.
- Baud rate 9600,n,8,1 D
- Cimrex 12

modbus com port 64.prx
cimrex12.cpa
