Cimrex panel at the SSB of the BX controller

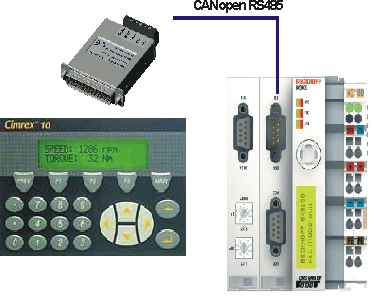

The CAN interface of the BX controller can also be used for connecting an operating panel. In this example, a panel from the company Beijers is connected. Further information on the panel can be found under http://www.beijerelectronics.de.

Necessary components

• 1 x BX3100
• Some Bus Terminals for the K-bus (here 3 x KL2114, can be adjusted in the System Manager file)
• 1 x Cimrex 41
• 1 x CAB 15 CAN adapter
• BX sample program in ST: (sample file)
•
• BX example configuration: (sample file)
•
• Example for Cimrex 41: (sample file)
•
• Baud rate 500 kbaud
• CAN slave address 10
