CFC-Client*

With the CFC client, the BX device offers the option of copying the complete memory content of a BX Controller. The data from the memory are saved in a BIN file and can be loaded into an identical controller.

The CFC client runs on Windows 9x, NT, 2000 and XP and is completely independent of TwinCAT.

CFC client (sample file) (Note: The DLLs have to be registered manually via regsvr32)

When the CFC client is started, the COM parameters have to be set first.

CFC-Client* 1:
CFC client

Port/Port Setup...

CFC-Client* 2:
Call the port setup

Select the required setting.

CFC-Client* 3:

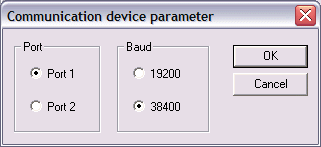

Set the COM parameters

Before opening the COM port, a physical connection to the BX Controller has to be established. Then open the COM port.

CFC-Client* 4:
Open the COM port

Use upload to create a copy of the BX memory and save it as a BIN file.

CFC-Client* 5:
Upload the BX memory content to a BIN file

Use download to load the BIN file onto the BX controller. The controller starts automatically after a successful download.

CFC-Client* 6:
Downloading a BIN file to the BX controller

* The CFC server is available on the BX Controller range from firmware version 1.09.
