Industrial PCs with Arm^® processors: Update image

For industrial PCs with Arm^® processors, the image is copied directly to the microSD card. Use a flash tool such as Rufus to do this.

Prerequisites:

Card reader for microSD cards
Download the Rufus tool from: https://rufus.ie/

Proceed as follows:

1. Start the Rufus tool on a PC with Windows operating system.

2. Click on Select and select the image you want to copy to the microSD card.

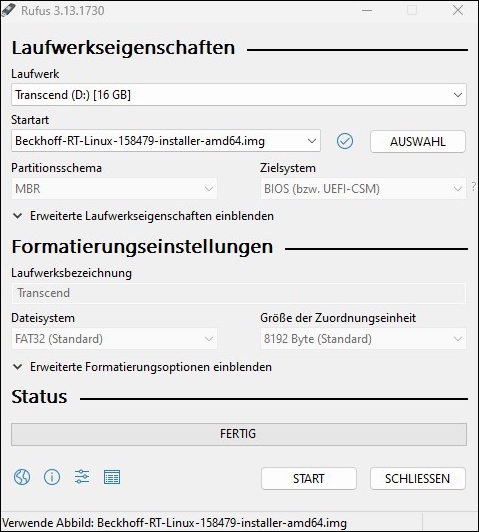

Industrial PCs with Arm® processors: Update image 1:

3. Select the microSD card as the target drive under Device.

4. Click Start to copy the image to the microSD card.

The process may take a few minutes. Do not cancel the process until the message Ready appears. Then boot the industrial PC from the microSD card and start Beckhoff RT Linux®.
