Installing Beckhoff RT Linux^®

Connect the boot-capable USB stick with Beckhoff RT Linux^® image to an industrial PC and start the device.

Prerequisites:

Bootable USB stick with Beckhoff RT Linux^® image.
Min. 4 GB free space on the memory card.

Proceed as follows:

1. Connect the USB stick with Beckhoff RT Linux^® image to the industrial PC.

2. Start the industrial PC and press [F7] to enter the boot menu.

3. Select the UEFI entry for the USB stick and confirm with [Enter].
The industrial PC boots from the USB stick and the Beckhoff installer is executed.

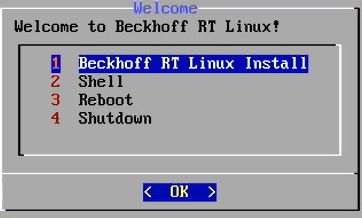

4. Select the TC/LUR Install option to install Beckhoff RT Linux^®.
Installing Beckhoff RT Linux® 1:

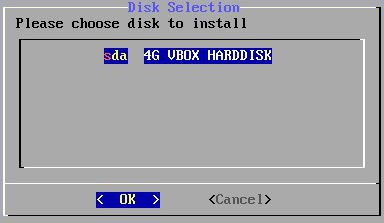

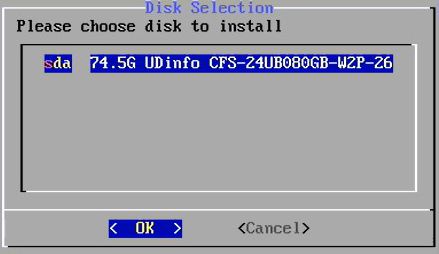

5. Select the appropriate hard disk as the destination for the installation.
Installing Beckhoff RT Linux® 2:

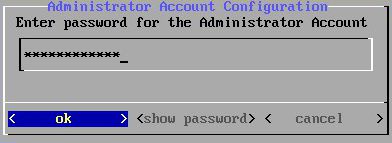

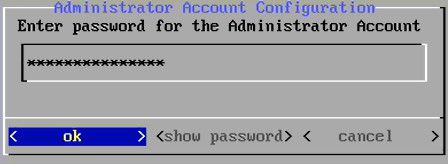

6. Enter a password and follow the further installation instructions.
Installing Beckhoff RT Linux® 3:

Restart the industrial PC. Beckhoff RT Linux^® is loaded.
