Configuration: Siemens S7 controller with BX3100

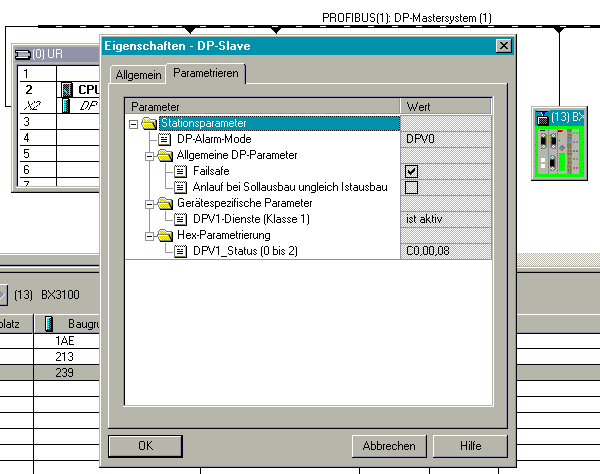

BX3100 parameter data

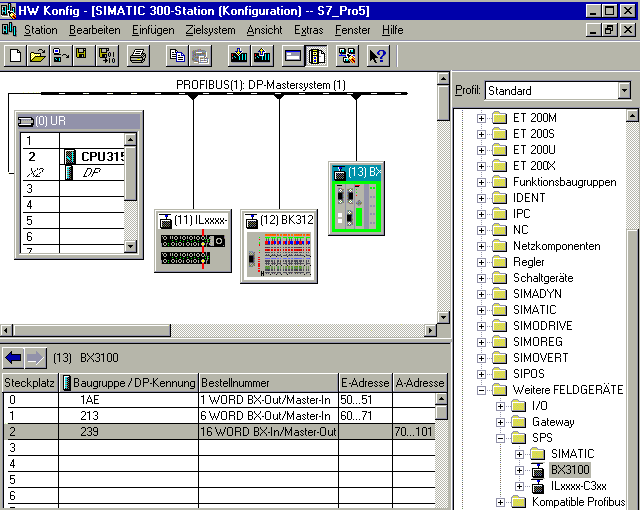

Configuration: Siemens S7 controller with BX3100 1:
Settings

BX3100 module configuration

Sample 1

1 x BX3100

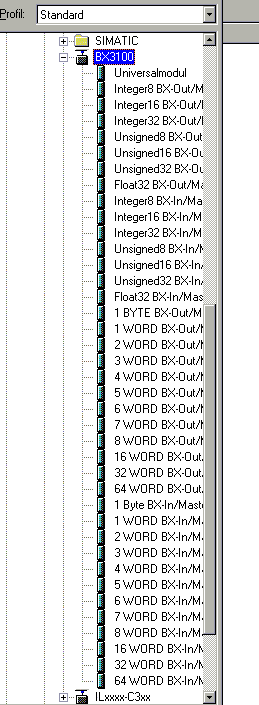

Configuration: Siemens S7 controller with BX3100 2:
Sample for entering individual bytes.
Configuration: Siemens S7 controller with BX3100 3:

byte for byte

Each individual byte requires one byte of ConfigData.

Configuration: Siemens S7 controller with BX3100 4:
Sample for entering associated bytes.
