Notes on tracing possibilities

On MC_ReadStatus, the following output values are suitable for tracing: lr_act_pos, lr_act_rev, ipo_a_act. They present the current position, speed and acceleration setpoints in each cycle.

Example from Multiprog:

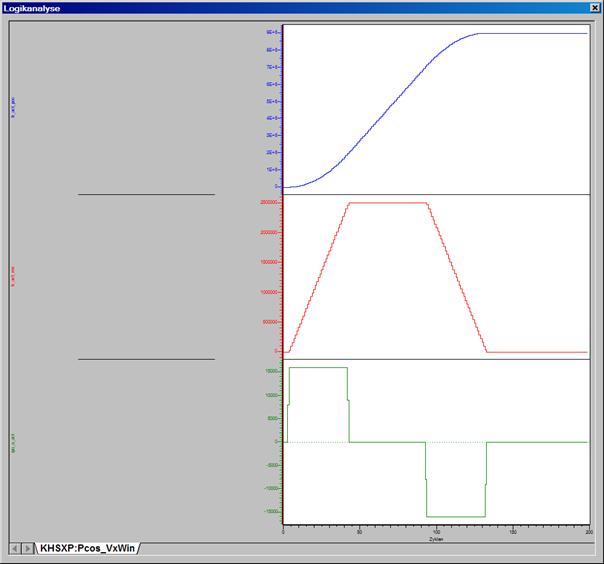

Trace of an unfiltered movement with a linear slope

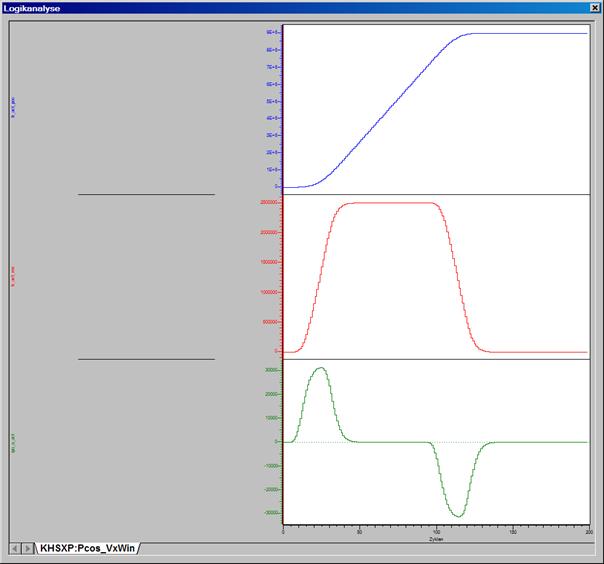

Trace of the filtered movement with double acceleration

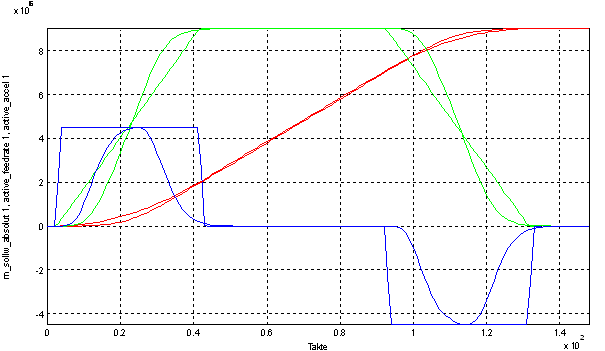

Superpositioning of both traces (note: for technical reasons, the acceleration is not true to scale here!).
