Example

Initialization

The compensation for the X-axis is activated by the following settings:

lr_param.temp_comp              1
lr_param.temp_comp_position_0   100 [0.1µm]
lr_param.temp_comp_offset_0     40 [0.1µm]
lr_param.temp_comp_coefficient  4000 [µm/m]
lr_param.temp_comp_n_cycles     20

NC program

For the test the following NC program was used:

N10: G90 G01 X0 F1000
G04 1
N10 X100
G04 1
N10 X80
G04 1
N10 X50
G04 1
N20 X-200
G04 1
$GOTO N10
M30
Example 1:

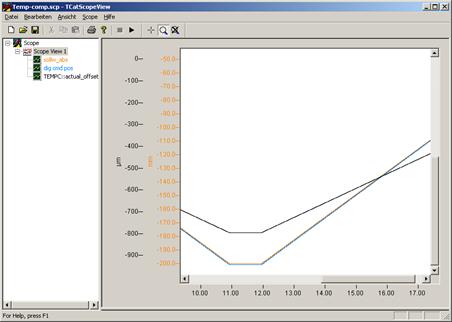

Figure 1-12: Recorded compensation values in dependence on the axis position.
