Firmware update | Firmware version V1.07 to V1.07 or higher

Firmware update/downgrade AX8000 within V1.07 or higher



Firmware update | Firmware version V1.07 to V1.07 or higher 1:
►Request device EtherCAT state [bootstrap]
Firmware update | Firmware version V1.07 to V1.07 or higher 2:

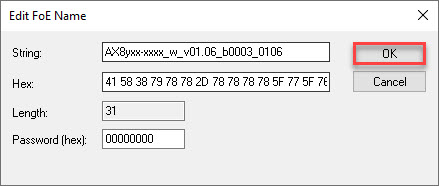

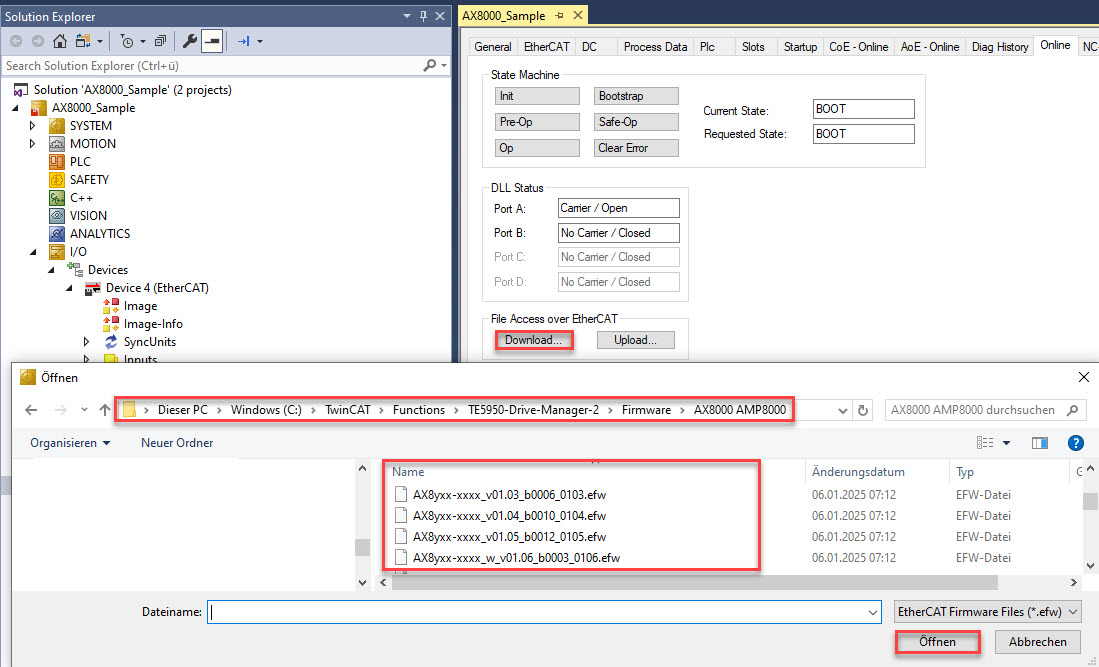

►Download the required firmware version via (FoE) download
Firmware update | Firmware version V1.07 to V1.07 or higher 3:
Firmware update | Firmware version V1.07 to V1.07 or higher 4:
►Perform a “Power cycle”











The firmware update/downgrade is complete.
