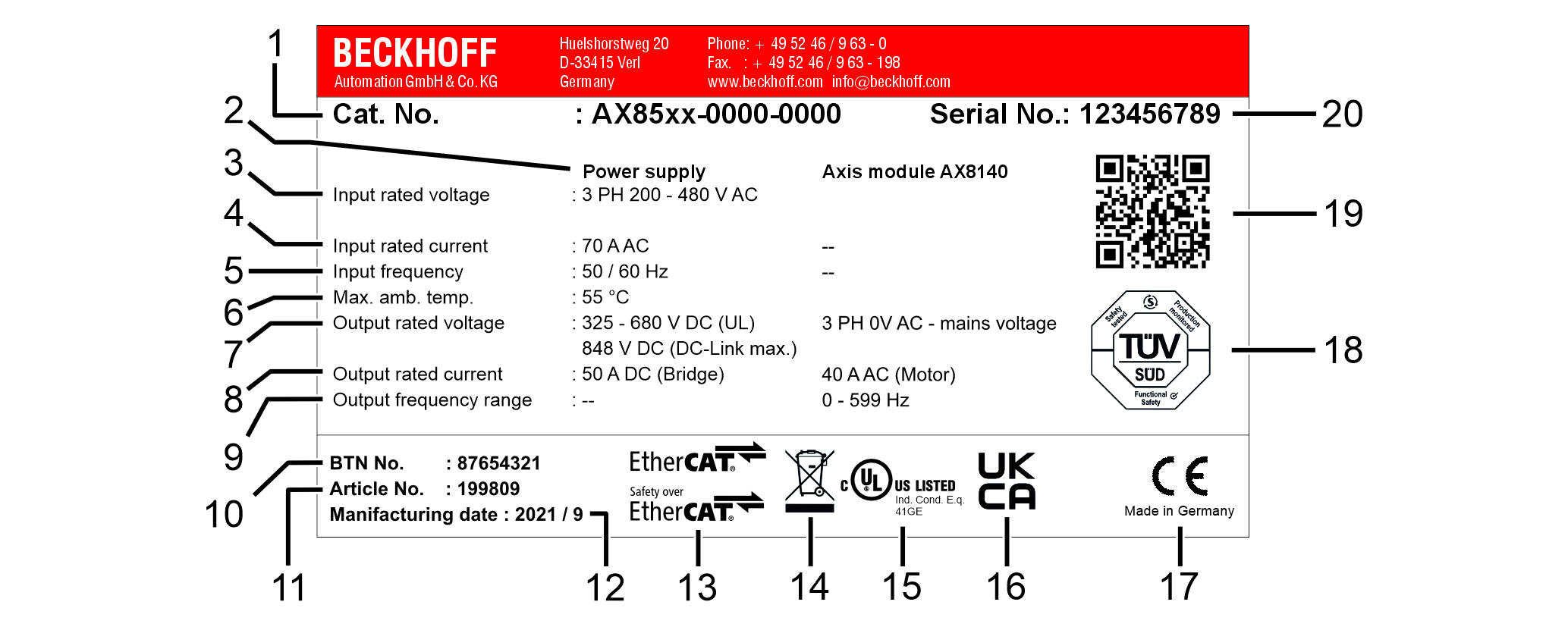

Name plate AX85xx
Item number | Explanation |
|---|---|
1 | Order number |
2 | Data for power supply module and axis module |
3 | Nominal input voltage |
4 | Nominal input current |
5 | Input frequency |
6 | Maximum ambient temperature |
7 | Nominal output voltage |
8 | Nominal output current |
9 | Output frequency range |
10 | Beckhoff traceability number |
11 | Order number |
12 | Date of manufacture |
13 | EtherCAT conformity |
14 | Disposal according to WEEE directive |
15 | cULus approval |
16 | UKCA conformity |
17 | EAC conformity |
18 | CE approval |
19 | TÜV certification |
20 | Data-Matrix Code |
21 | Serial number |
