Type code and Name plates

Type code

AX5xyz-a b c d - efgh

AX

Beckhoff product line:
Servo drive

     5

Type series:
5000

       X

No. of channels:
1 = single-channel
2 = two-channel

         YZ

Nominal current per channel:
Single-channel devices
01, 03, 06, 12, 18, 25
Two-channel devices:
01, 03, 06

              -a

Internal number

                 bc

Hardware features:
00 = Standard
01 = Cold plate design with enclosed housing
02 = Auxiliary fan for devices that are normally supplied without fan (e.g. AX5201)

                     d

reserved

                        e

Version:
0 = Standard version
1 = Custom version (see key)

                               f

Hardware version
0 = 1st generation
2 = 2nd generation

                                  gh

Internal number

Name plates

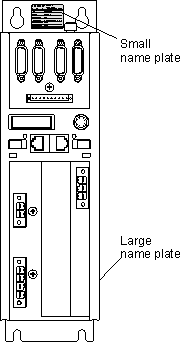

The servo drive features two name plates.

  • Large name plate:

  • Small name plate:

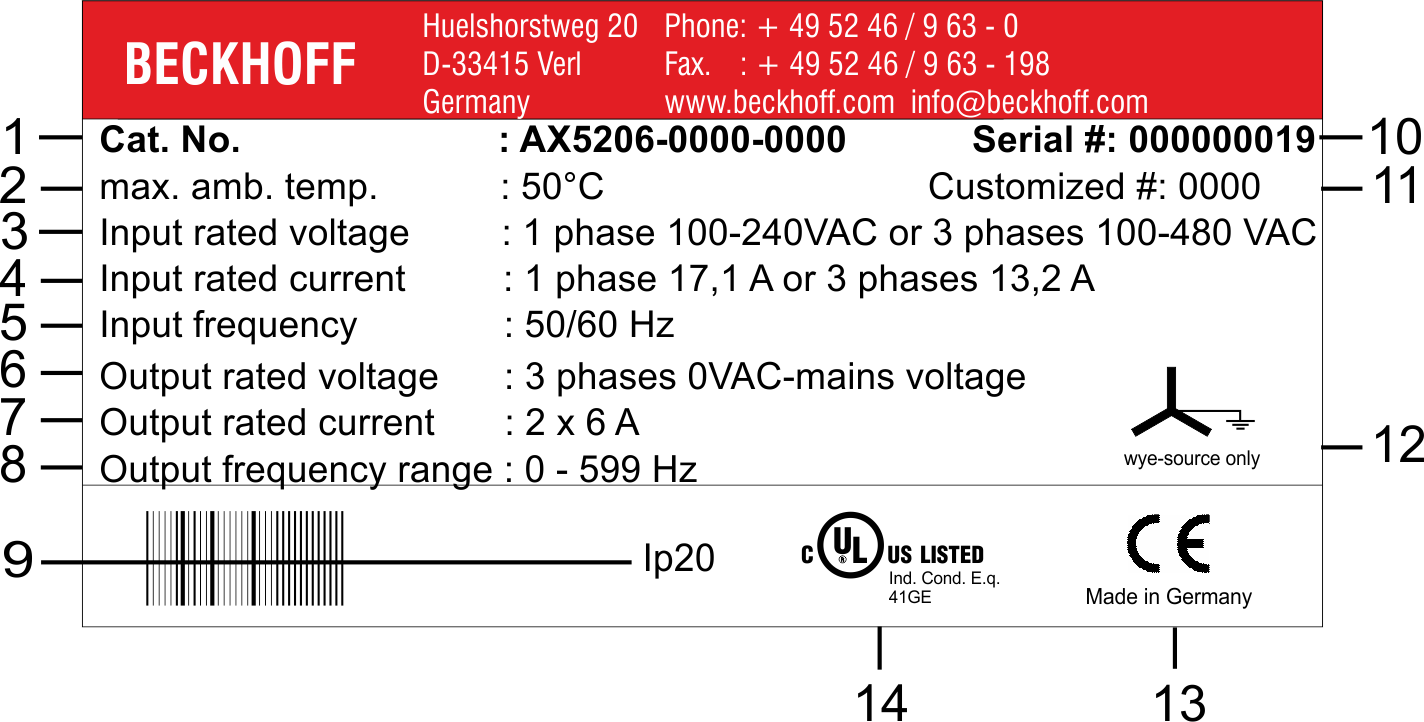

The large name plate attached at the side of the servo drive and includes the following information.

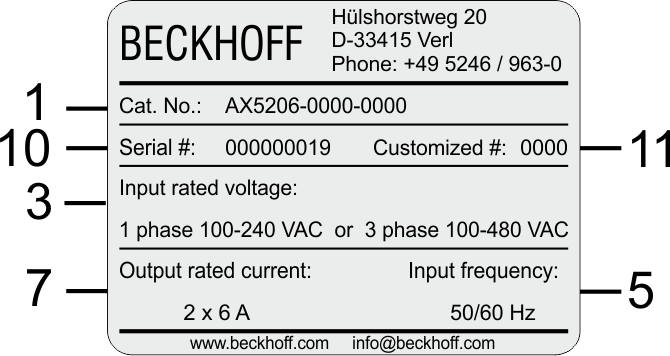

The second name plate is attached to the upper mounting flange mounted and is designed to show the main, even if several AX5000 are installed directly side by side. The small name plate contains the following information.

Type code and Name plates 1:



Type code and Name plates 2:



Type code and Name plates 3:

1

Catalog number

6

Output rated voltage

11

Customer-specific

2

Max. ambient temperature

7

Output rated current

12

wye-source only

3

Input rated voltage

8

Output frequency range

13

CE - Conform

4

Input rated current

9

Protection class

14

UL - Listed

5

Input frequency

10

Serial number
